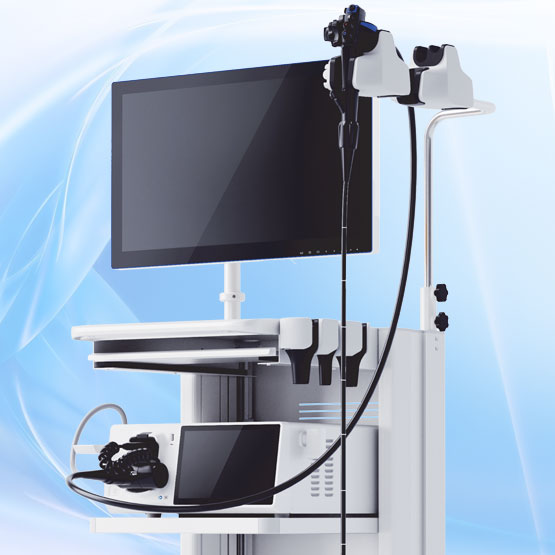

BF120 Endoscopic System
 |
FULL HD |
 |
Intelligent Touch Panel |
 |
Optical Chromoendoscopy |
 |
Artificial Intelligence (Optional) |
High Resolution FHD
Premium Image Quality
The BF120 model is equipped with an FHD CMOS sensor that ensures high-quality images. It creates a clear and high-contrast transition between bright and dark tissues, allowing more detailed visualization.

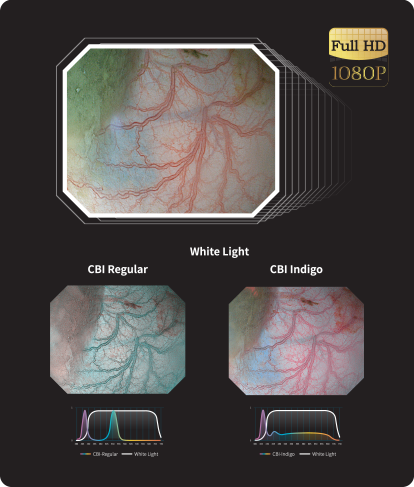

3 Efficient LEDs with 3 CBI Modes
BF120 system is equipped with two light sources utilizing chromoendoscopy modes that simulate different light combinations. These modes make it possible to visualize tissues more effectively, clearly, and precisely in various clinical situations.
Intuitive 10.1-Inch Touch Panel
The entire system can be easily controlled using a 10.1-inch touch screen. This customizable interface enhances usability, comfort, and intelligent control of the system.
Built-in DICOM function.
Versatility of Applications
BF120 continues the tradition of its predecessors while being specially developed for the newest generation of endoscopy systems. It meets the dynamic needs of departments such as gastroenterology, pulmonology, respiratory therapy, and otolaryngology.
Colo Smart Assistance (CSA) Function
Colonoscopy can be a complex procedure by nature, but now you can approach it with confidence.
Adjustable Stiffness
The flexibility of the insertion tube for colonoscopy can be adjusted according to the doctor’s preferences and the anatomical characteristics of the patient’s colon thickness.
Elastic Bending
The elastic distal section improves patient comfort and enhances the efficiency of the colonoscopy procedure.
Synchronized Force Transmission
The synchronized transmission of force improves maneuverability during colonoscopy procedures.
5th Generation Handle
An improved ergonomic design and reduced weight of the 5th generation handle further reduce fatigue during operation.
3 Light Guides
The visualization system uses three light guides, significantly improving illumination and providing brighter, more uniform light — especially in distant or dark areas.
Front Water Jet
The front water jet function is included as standard, improving cleaning efficiency and visualization of the operative field.

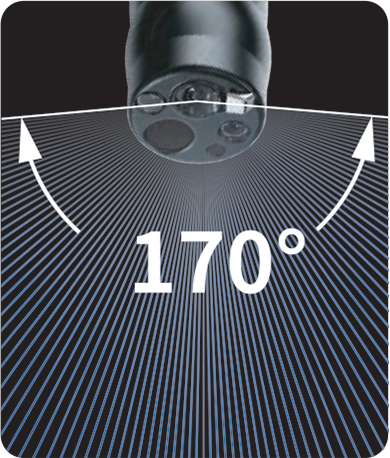

Wide Viewing Angle
Colonoscope models offer a wide viewing angle of 170°, helping minimize blind spots and improving visibility, especially in folded sections of the colon.

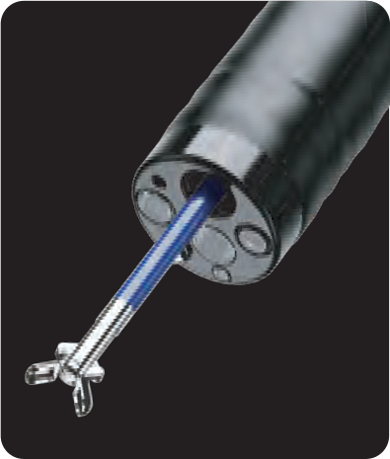

Large Instrument Channel
Thanks to the enlarged instrument channel, physicians can use various endoscopic tools for biopsy and suction, increasing efficiency even in anatomically challenging areas.
Illumination: 3-LED light sources
Chromoendoscopy: CBI Standard / CBI Indigo
Image Enhancement: Structure / Edge / NBE
Brightness Adjustment: Automatic / Manual mode
Digital Zoom: 1.0x, 1.2x, 1.5x, 1.8x, 2.0x, 4.0x
Freeze and Restore: Real-time image freeze and recovery
IRIS: Peak / Medium / Auto
Internal Storage: 500 GB, 500 user profiles, 100,000+ exam recordings
External Storage: USB
User Interface: 10.1-inch customizable touch screen
DICOM: Supports DICOM 3.0 protocol
