Broncho-fibroscope

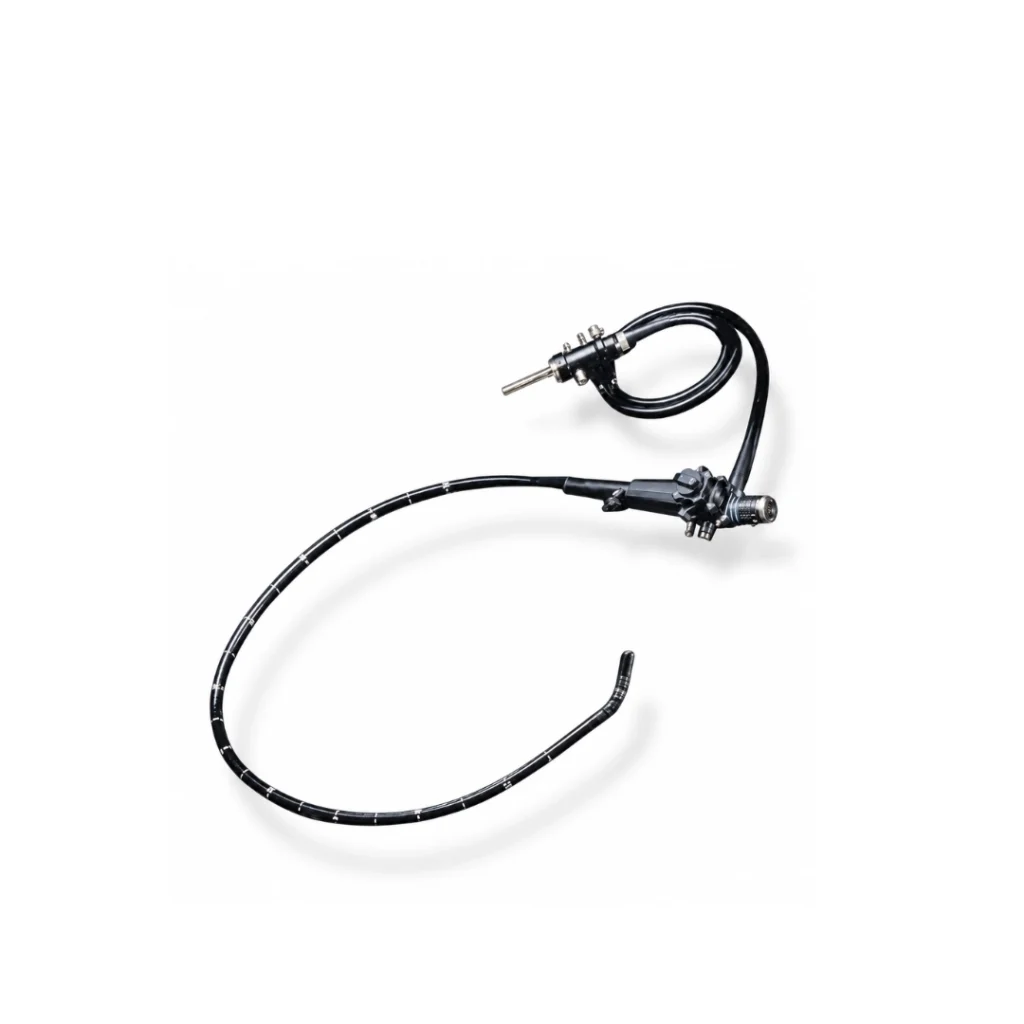

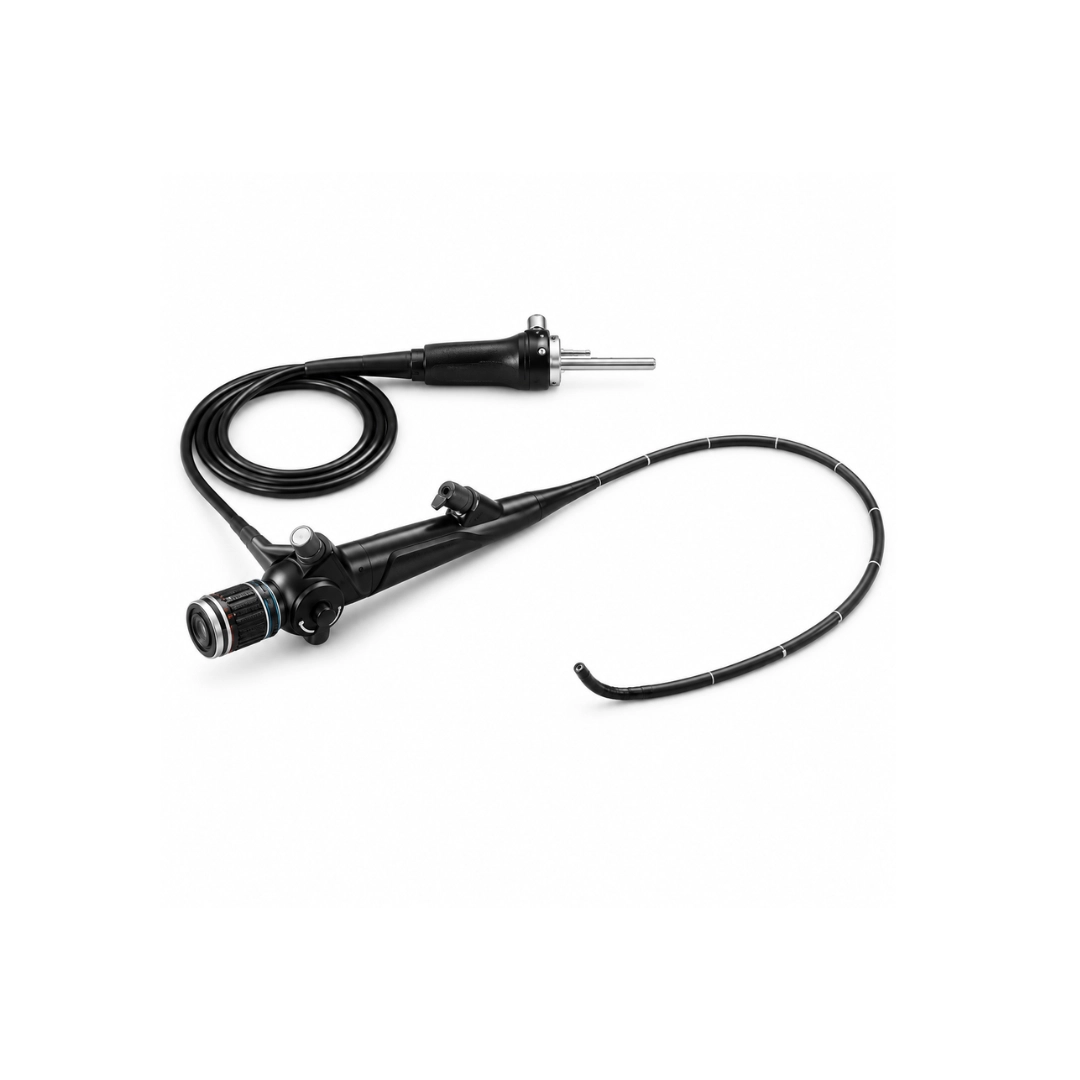

Brightfield Flexible Bronchoscope for Respiratory Endoscopy

The Brightfield Flexible Bronchoscope is a fiberoptic endoscope for visual examination of the respiratory tract and selected bronchoscopic interventions. It allows physicians to inspect the trachea and bronchial tree, assess visible abnormalities, locate areas of bleeding, and perform procedures using compatible instruments introduced through the working channel.

The BRO_FL range includes 11 bronchoscope configurations, offering different insertion tube diameters, working lengths, and instrument channel sizes. This selection allows healthcare professionals to choose an instrument according to airway anatomy, examination requirements, and the intended procedure.

Fiberoptic Visualization with German-Made Optical Components

Brightfield bronchoscopes incorporate optical components from a German manufacturer. The optical design uses patented lens technology described by the manufacturer as providing visibility across the viewing field.

The fiberoptic viewing system allows the physician to examine the airway mucosa and anatomical structures during bronchoscopy. Its wide viewing capability supports orientation within the bronchial tree and visual assessment of areas requiring further investigation.

Flexible Design for Airway Navigation

The bronchoscope’s flexible insertion tube facilitates navigation through the natural curves and branching structures of the respiratory tract.

The maneuverable design helps the physician position the instrument during examination of different bronchial segments and perform selected endoscopic manipulations.

The BRO_FL series offers insertion tube diameters ranging from 3.0 to 6.0 mm and working lengths from 410 to 600 mm. These dimensions vary by configuration, allowing the instrument to be selected for the intended clinical task.

Working Channels for Bronchoscopic Instruments

Depending on the model, the Brightfield bronchoscope is equipped with an instrument channel measuring 1.2, 2.0, 2.2, or 2.8 mm in diameter.

The channel provides access for compatible endoscopic instruments during selected diagnostic and therapeutic procedures. It may also be used for aspiration when appropriate for the instrument and clinical protocol.

Smaller-diameter bronchoscopes are available with 1.2 mm channels, while larger configurations offer wider channels for procedures requiring compatible accessories of greater diameter.

The dimensions of the working channel must be considered when selecting instruments for bronchoscopic interventions.

Eleven Configurations for Different Clinical Requirements

The BRO_FL series includes configurations with different combinations of insertion tube diameter, working length, and channel size.

For example, the BRO_FL_04 features a 3.0 mm diameter and a 510 mm working length, while the BRO_FL_11 has a 6.0 mm diameter, a 550 mm working length, and a 2.8 mm instrument channel.

Other available configurations offer working lengths of 410, 530, 550, or 600 mm and instrument diameters selected according to the requirements of the examination.

The complete model range and corresponding dimensions are listed in the technical specifications below.

Compatibility with Endoscopic Systems

Brightfield flexible bronchoscopes feature connectors compatible with selected endoscopic equipment from established manufacturers, including Karl Storz.

This allows the instruments to be considered for use with existing compatible endoscopy equipment. The compatibility of specific connectors, light sources, and accessories should be verified for the selected configuration before use.

Watertight Construction and Reprocessing

The bronchoscope features a sealed, watertight construction designed to support the reprocessing requirements of reusable endoscopic instruments.

The manufacturer also indicates compatibility with low-temperature sterilization. The appropriate cleaning, disinfection, and sterilization procedures must be selected according to the instructions for use and the validated reprocessing requirements of the particular instrument.

Routine inspection, leak testing, and proper storage are important parts of maintaining the bronchoscope in clinical practice.

Clinical Applications

The Brightfield Flexible Bronchoscope is used in respiratory endoscopy for diagnostic examinations and selected therapeutic interventions.

• Diagnostic bronchoscopy: Visual examination of the trachea, bronchi, and accessible airway structures.
• Assessment of airway abnormalities: Inspection of the respiratory tract when structural or mucosal changes are suspected.
• Bronchial aspiration: Aspiration of airway secretions under endoscopic guidance when clinically indicated.
• Localization of bleeding: Visual identification of accessible sources of bleeding within the bronchial tree.
• Selective bronchography: Endoscopic assistance during selected diagnostic examinations of the bronchial system.
• Therapeutic bronchoscopy: Selected endoscopic manipulations using instruments compatible with the available working channel.

The instrument may be used in pulmonology departments, respiratory endoscopy units, and hospital facilities performing bronchoscopic procedures.

Choosing a Brightfield Flexible Bronchoscope

Selection of the appropriate BRO_FL configuration depends on the patient’s airway anatomy, the required working length, the insertion tube diameter, and the intended use of the instrument channel.

The Brightfield Flexible Bronchoscope offers a selection of fiberoptic instruments with German-made optical components, watertight construction, and different dimensional configurations for professional bronchoscopic practice.

Technical Specifications

The BRO_FL series is available in 11 configurations. The insertion tube diameter, working length, and instrument channel diameter vary depending on the selected model.
