Wireless Ultrasound Probes

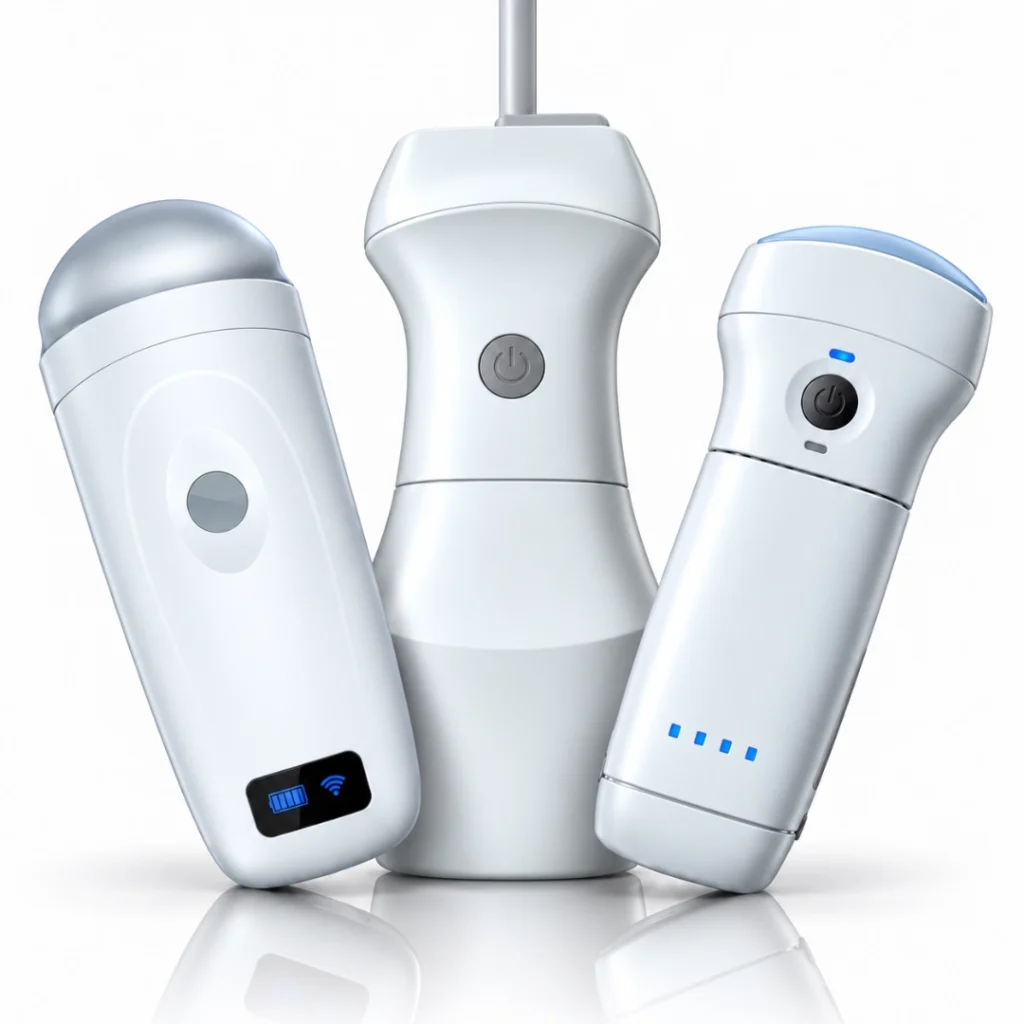

Brightfield Healthcare Wireless Ultrasound Probes for Different Clinical Applications

The Brightfield Healthcare range includes five ultrasound probe models with different designs, frequency ranges and areas of application. The line includes combined probes for several types of examinations, a dedicated convex probe, a high-frequency linear probe, and a 4D probe designed for bladder volume assessment.

All models support saving examination results as images, videos and DICOM files. The standard CProbe models support B, B/M, Color Doppler, PDI and PW modes, while the BProbe is designed for 4D scanning.

Brightfield Healthcare Ultrasound Probes

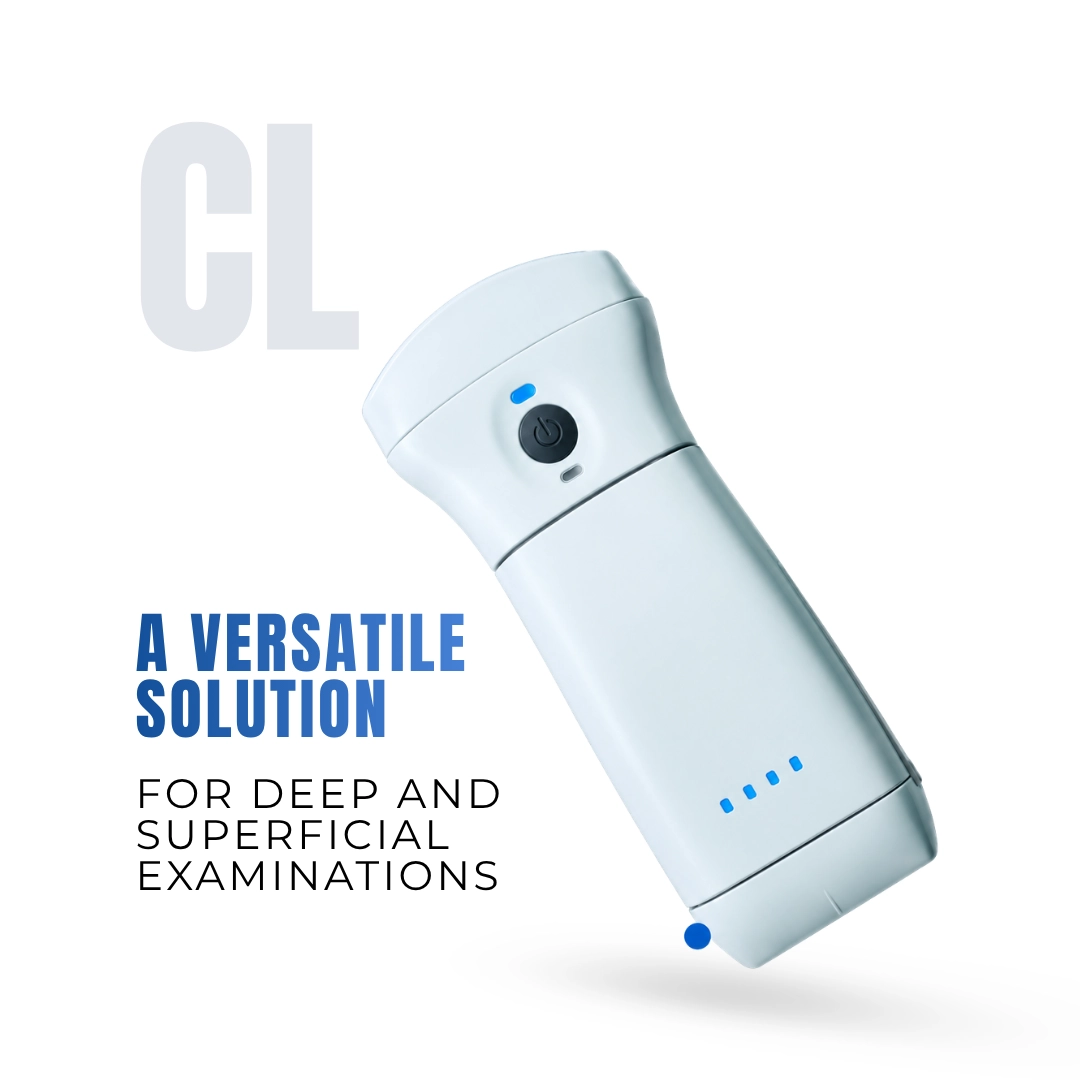

CProbe-CL — Combined Probe for a Wide Range of Examinations

The CProbe-CL combines linear and convex elements in a single probe. The linear section operates at 7.5/10 MHz and is suitable for superficial structures and vascular examinations, while the convex section operates at 3.2/5.0 MHz for imaging deeper anatomical structures.

The probe supports B, B/M, Color Doppler, PDI and PW modes. Its main applications include abdominal examinations, vascular studies and assessment of superficial structures.

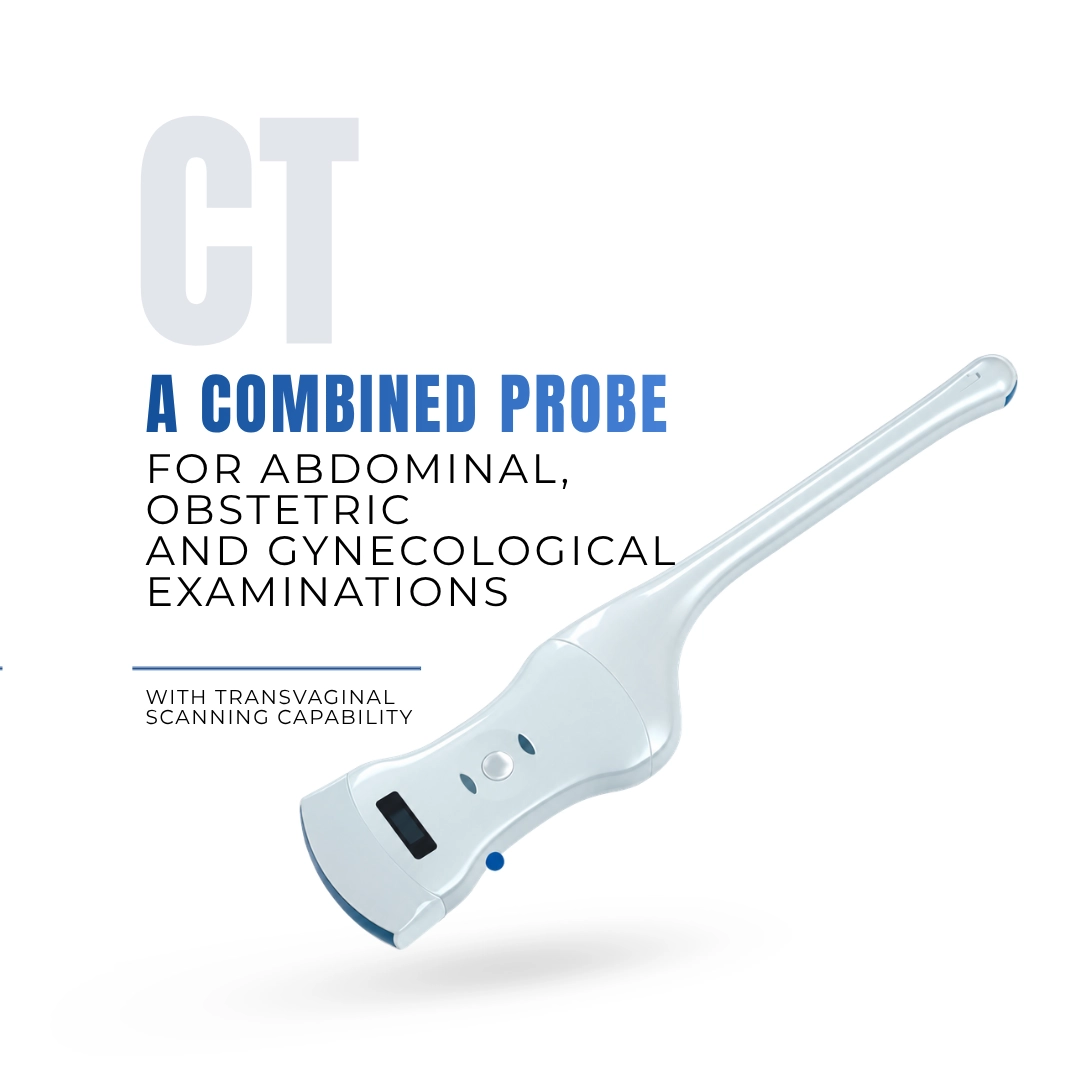

CProbe-CT — Convex and Transvaginal Probe in One Housing

The CProbe-CT is designed for examinations requiring both convex and transvaginal scanning. The convex section operates at 3.2/5.0 MHz, while the transvaginal section operates at 6/8 MHz.

The probe supports B, B/M, Color Doppler, PDI and PW modes. Its main clinical applications are gynecology and abdominal examinations.

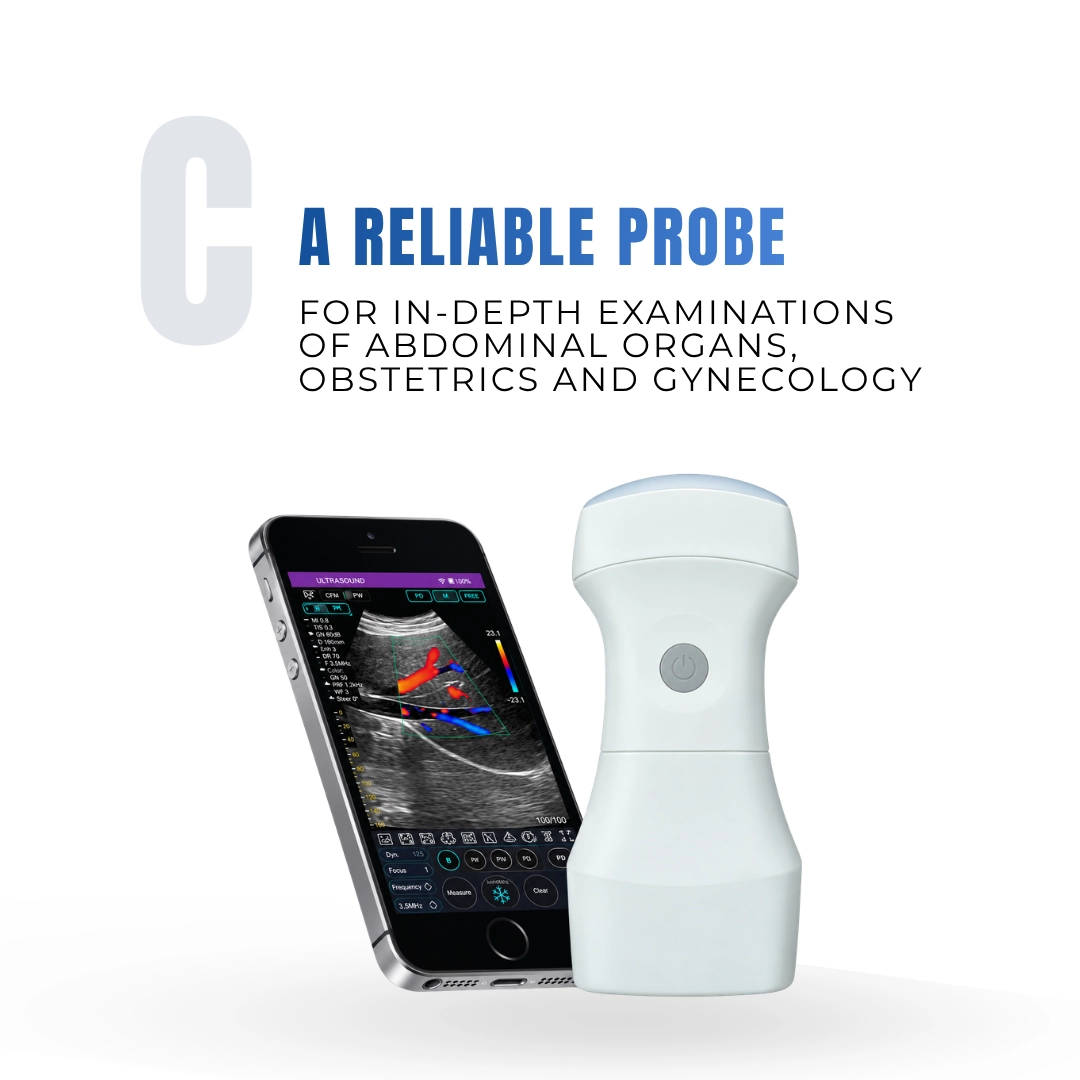

CProbe-C — Convex Probe for Abdominal and Obstetric Examinations

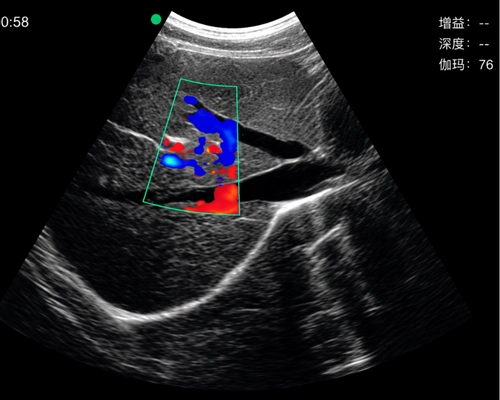

The CProbe-C is a convex probe operating at 3.2/5.0 MHz. Its configuration is intended for imaging abdominal organs and performing obstetric examinations.

The available modes include B, B/M, Color Doppler, PDI and PW. It is a practical option for clinical applications where convex scanning is the primary requirement.

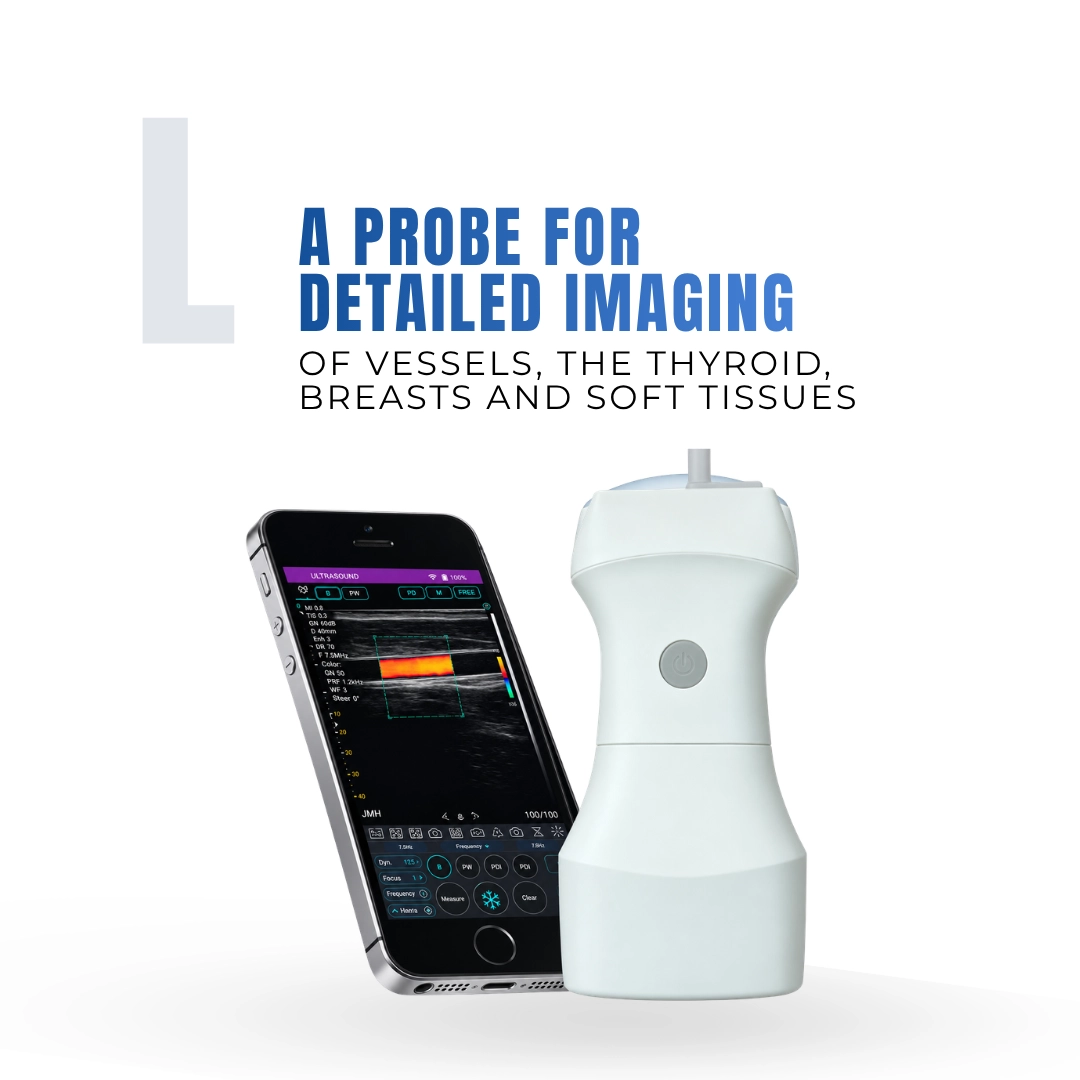

CProbe-L — High-Frequency Linear Probe

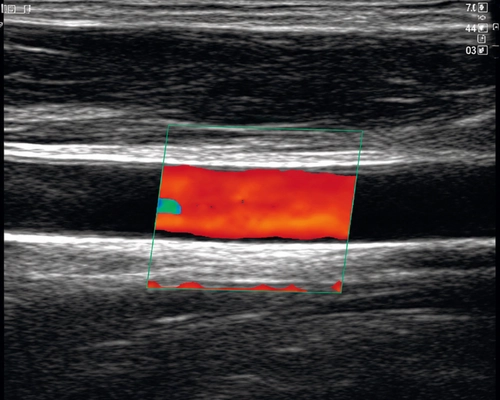

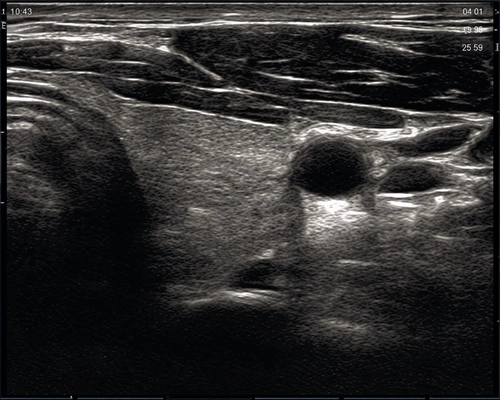

The CProbe-L operates at 7.5/10 MHz and is designed for examinations of superficial anatomical structures. Its linear configuration is suitable for assessing the thyroid gland, blood vessels, muscles and other superficial tissues.

The probe supports B, B/M, Color Doppler, PDI and PW modes, making it suitable for both standard imaging and Doppler examinations.

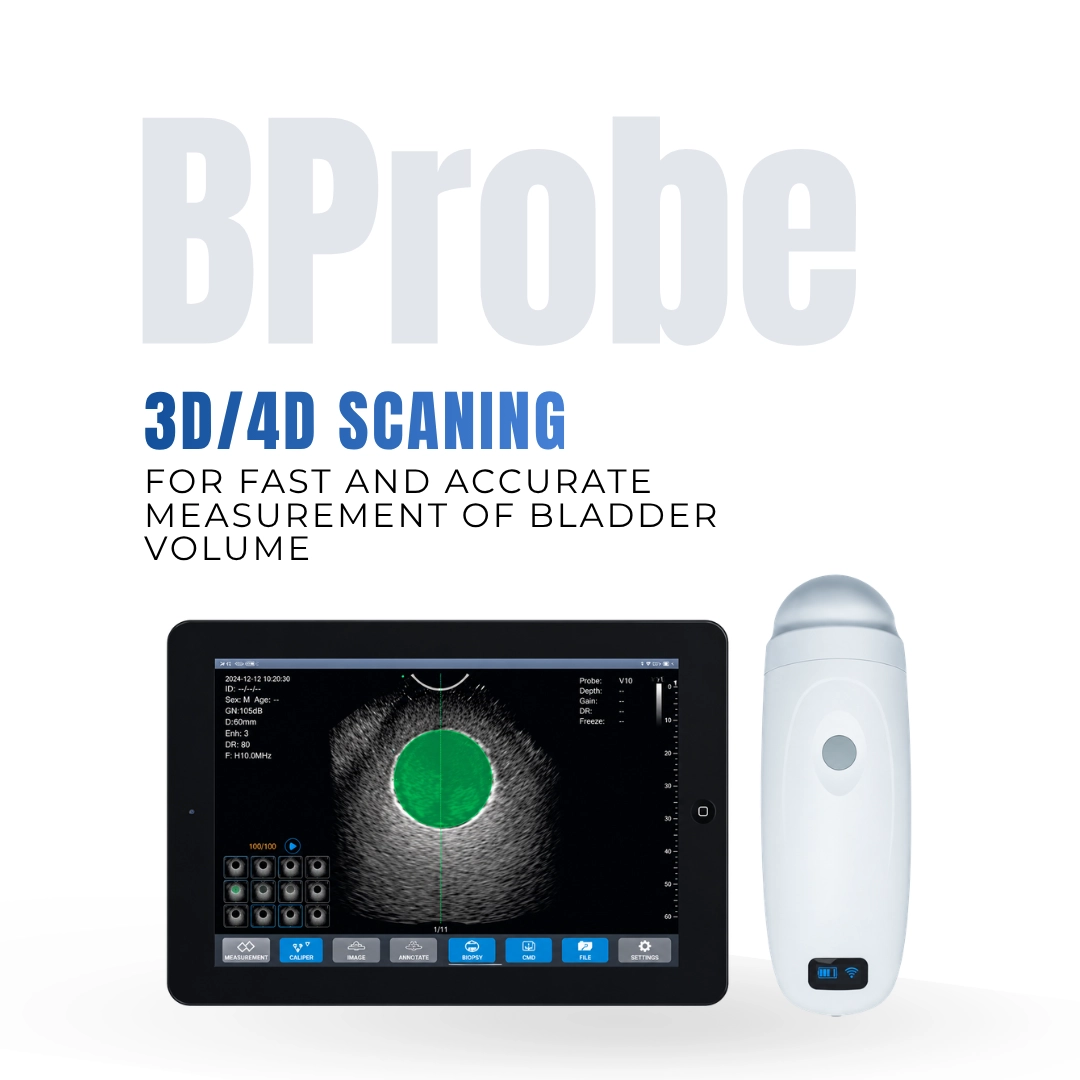

BProbe — 4D Probe for Bladder Volume Assessment

The BProbe differs from the other models in the range through its electronic convex array and 4D scanning capability. The probe is designed for urological examinations and visualization of bladder volume.

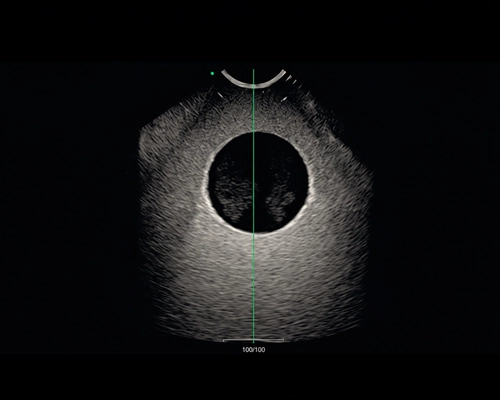

4D scanning produces volumetric images, making the BProbe a specialized solution for applications involving assessment and monitoring of the urinary bladder and its volume.

Model Comparison

The CProbe and BProbe range makes it possible to select a probe according to the specific clinical application — from abdominal and obstetric examinations to vascular and superficial tissue imaging and bladder volume assessment.
