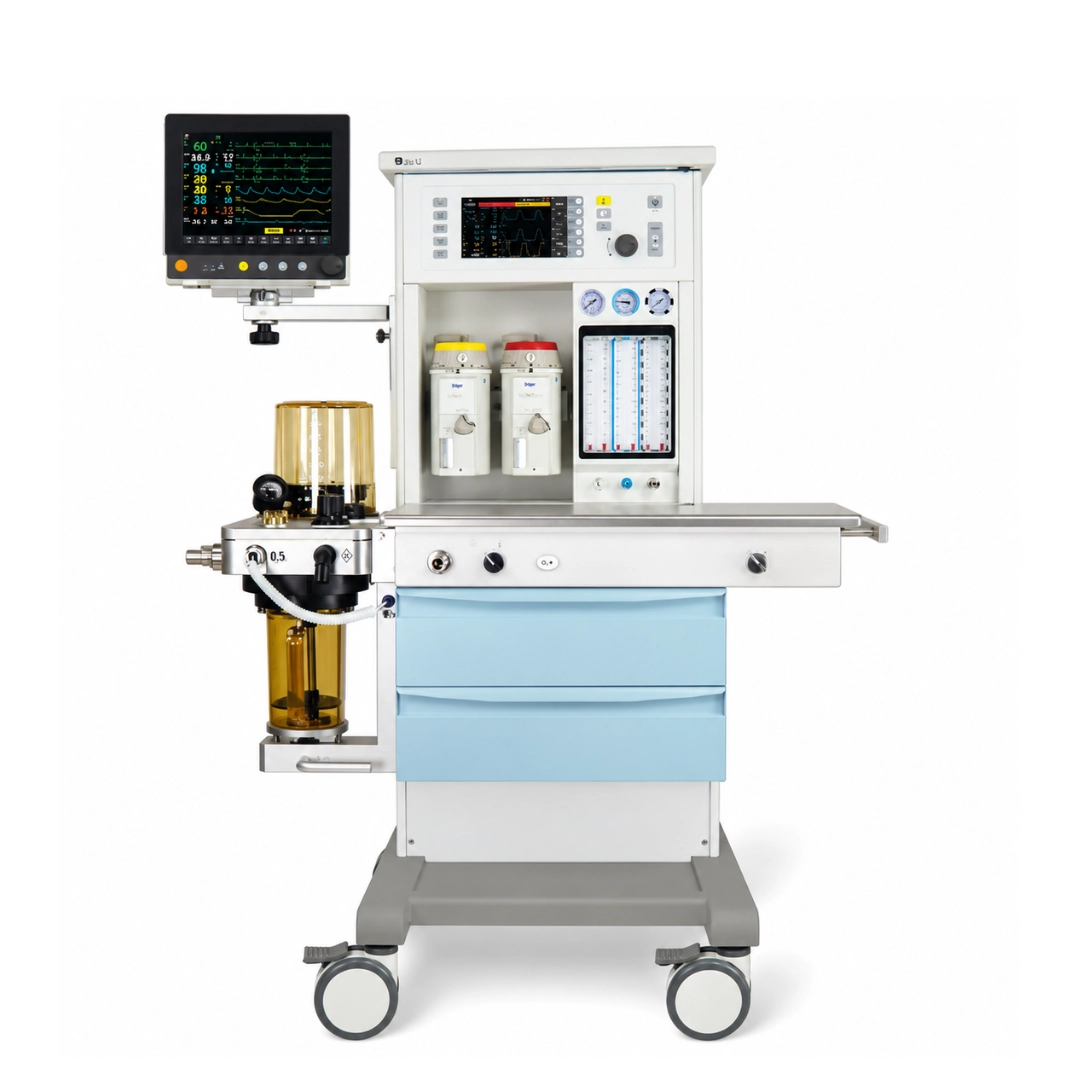

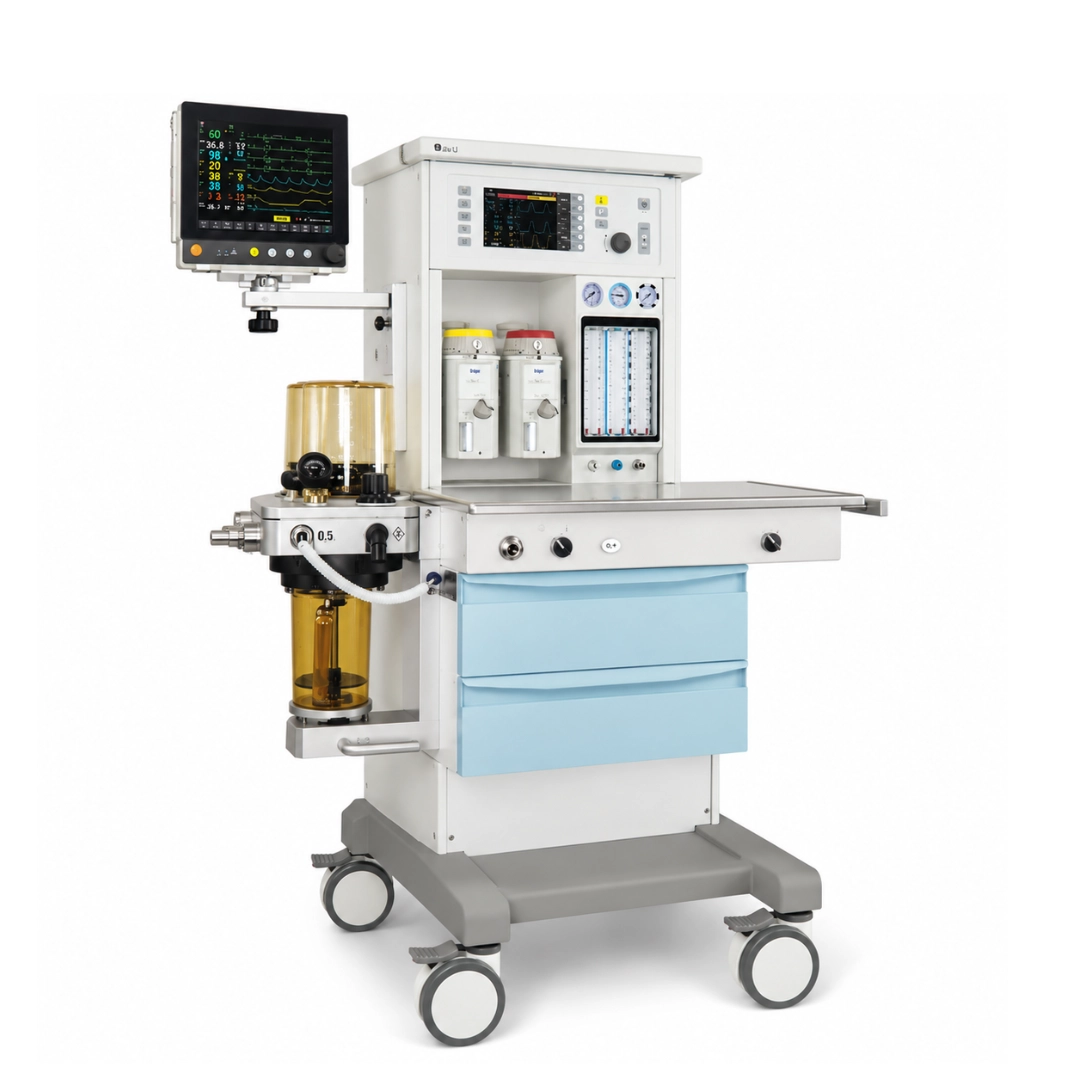

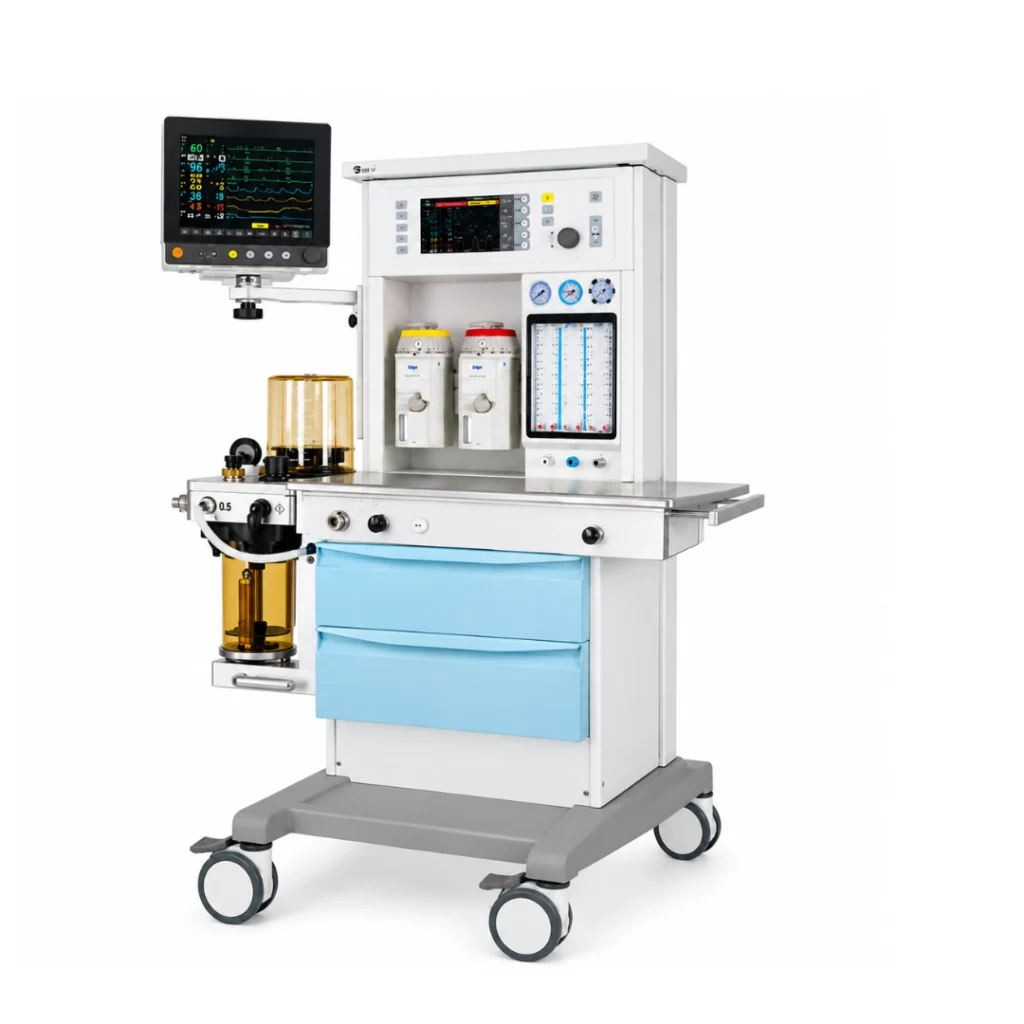

Modular Anesthesia System S6100A

Brightfield Healthcare S6100A Modular Anesthesia System

Brightfield Healthcare S6100A is a modular anesthesia system for anesthesia and respiratory management of neonatal, pediatric and adult patients. The system combines anesthesia gas delivery, mechanical ventilation, spontaneous breathing support and integrated safety functions in a single workstation.

The S6100A features an 18.5″ touchscreen TFT LCD display and an extended range of ventilation modes for different clinical situations. The combination of a large touchscreen interface and multiple ventilation options makes the system suitable for anesthesia practice where flexible control of respiratory support is required.

18.5″ Touchscreen and Extended Ventilation Modes

The large 18.5″ touchscreen TFT LCD display presents ventilation parameters and system information on a single interface. The S6100A supports a broad range of ventilation modes: MAN, SPONT, VCV, SIMV-VC, PCV, SIMV-PC, PSV/CPAP and HLM.

This range covers manual and spontaneous ventilation as well as volume-controlled, pressure-controlled and supported ventilation modes. The available configuration can be selected according to the patient’s condition and the requirements of the procedure.

Ventilation for Different Patient Categories

S6100A supports ventilation for neonates, children and adults. The system combines mechanical and spontaneous ventilation within one anesthesia workstation, making it suitable for clinical use across different patient categories.

Integrated Safety Functions

Safety functions are integrated into the S6100A ventilation system. The configuration includes barotrauma protection and a multi-level alarm system for monitoring the operating status of the anesthesia and ventilation system.

The alarm functions draw attention to conditions that require the anesthesiologist’s attention during ventilation and anesthesia.

Clinical Applications

Brightfield Healthcare S6100A can be used in clinical areas where anesthesia and respiratory management are required, including operating rooms, pediatric and neonatal care, and postoperative care.

The modular configuration of the system supports adaptation to the requirements of different clinical departments and procedures.

Autonomous Operation

The built-in battery supports up to 3 hours of autonomous operation. This provides additional operating time when the system is temporarily disconnected from the mains power supply.

Technical Specifications

The main technical specifications of the Brightfield Healthcare S6100A are presented below.
