Infusion pump KL-702

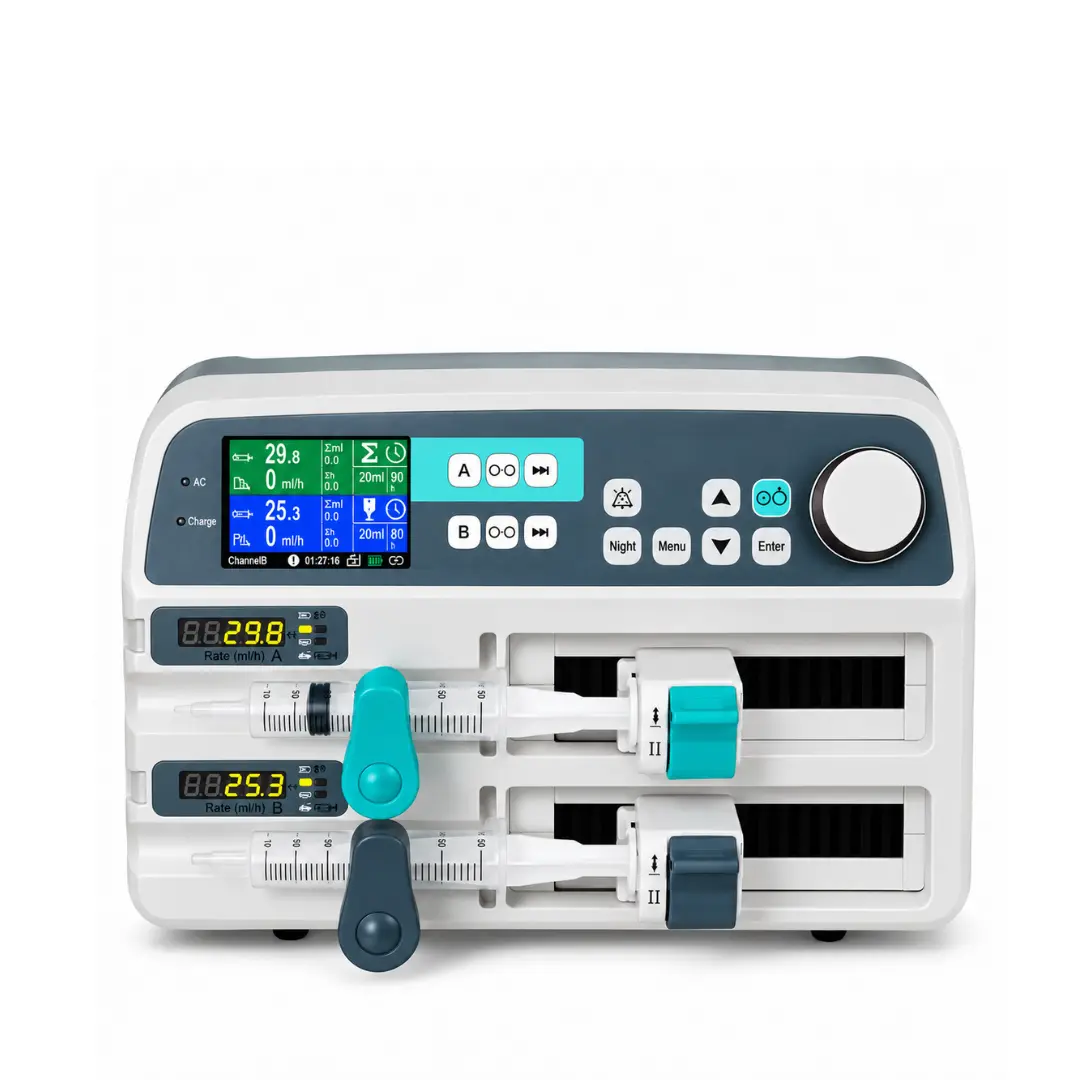

KL-702 Dual-Channel Syringe Pump

The Brightfield Healthcare KL-702 is a programmable dual-channel syringe infusion pump developed for controlled and continuous delivery of medications and infusion solutions. Two independent infusion channels can operate simultaneously, making the device suitable for procedures where several medications or solutions need to be administered at different rates.

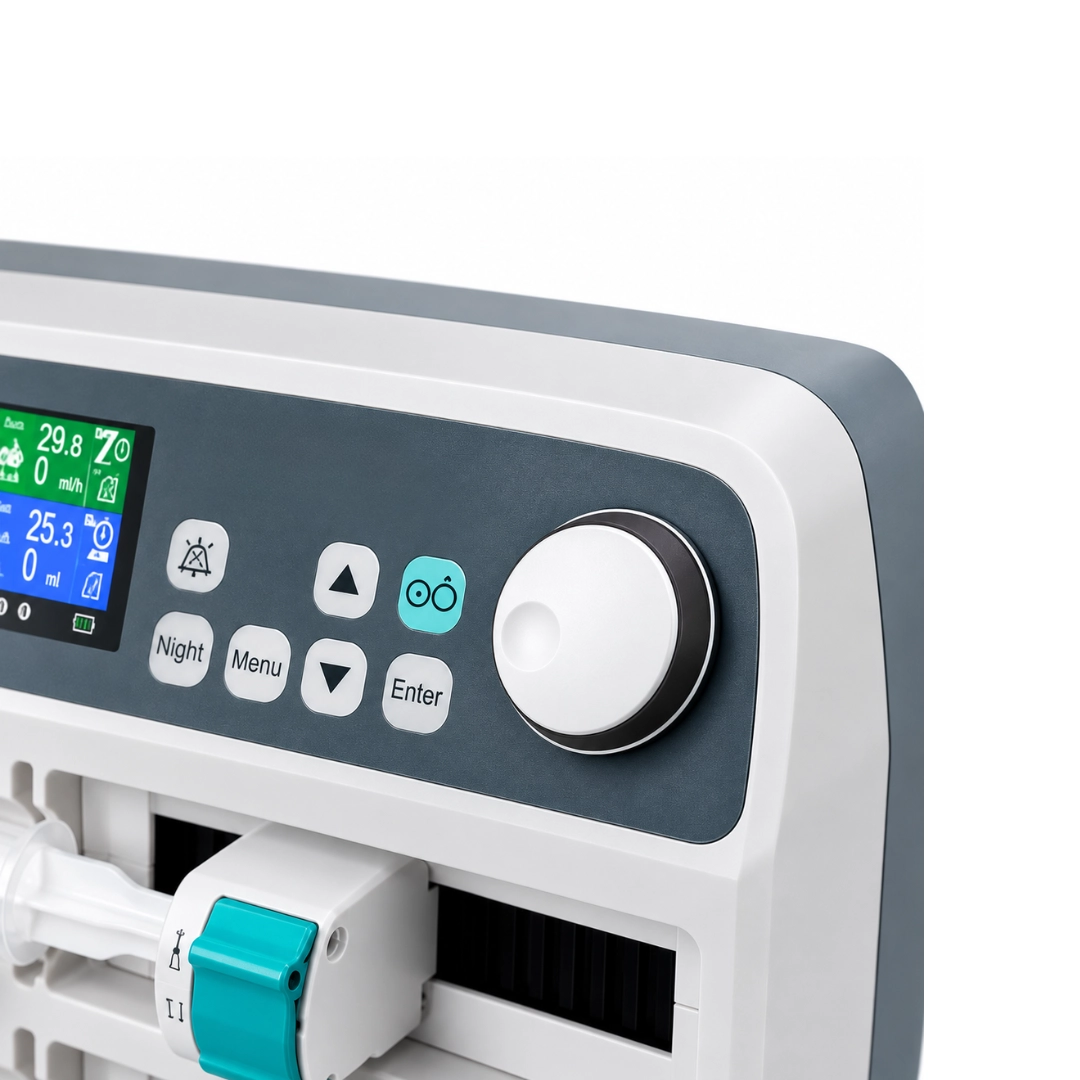

The pump supports 10, 20, 30 and 50/60 ml syringes and has a flow rate range of 0.1–1600 ml/h, depending on the syringe size. Infusion parameters can be set according to flow rate, time or patient body weight. The selected parameters and current infusion status are displayed on the integrated screen.

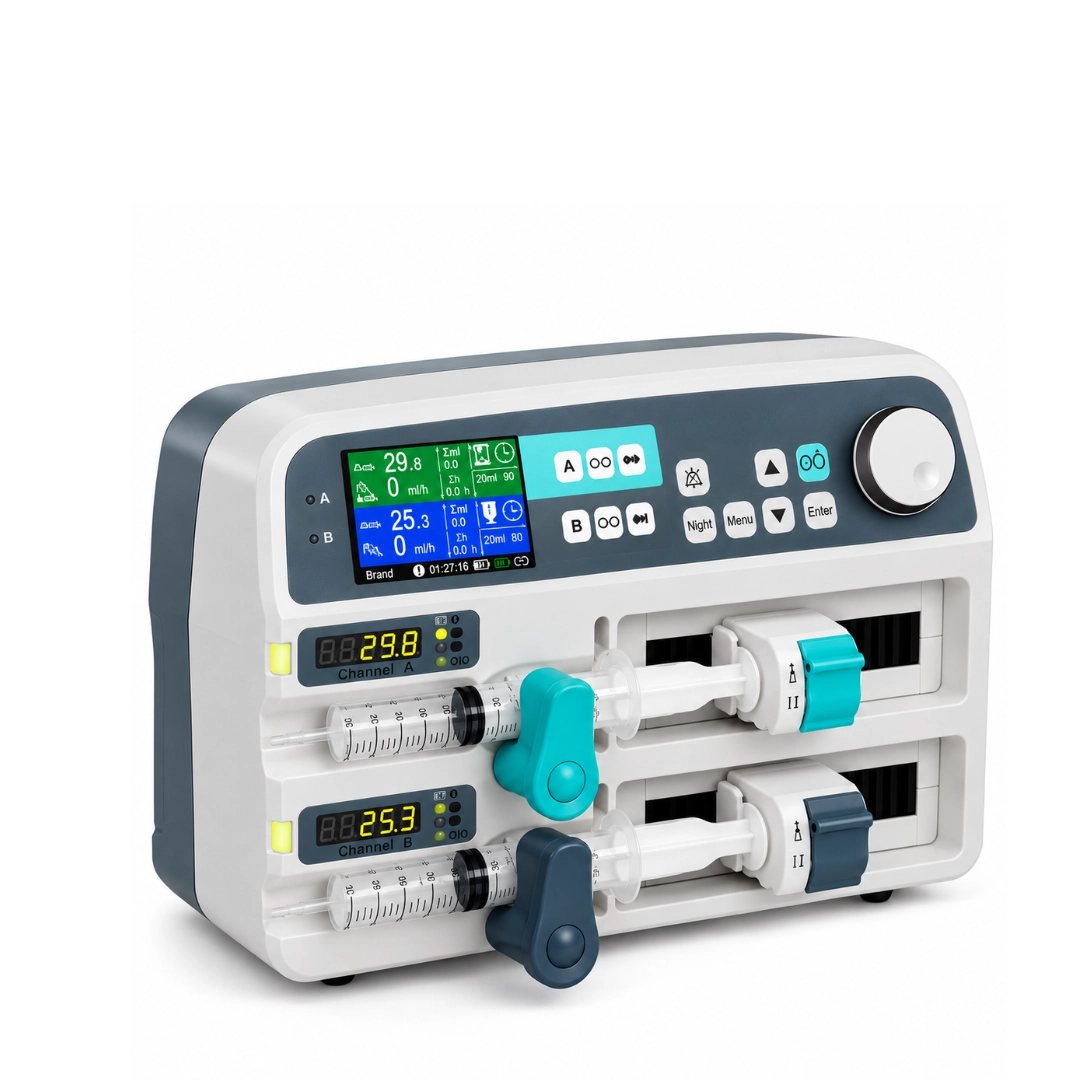

Independent control of two infusion channels

Each channel has its own syringe fixation and control system, so two infusions can run independently. Separate channel operation is particularly useful in intensive care and other clinical settings where different medications require individual administration rates.

Controlled medication delivery

The KL-702 is designed for accurate dosing during prolonged infusion therapy. Automatic syringe calibration helps match the pump to the installed syringe, while the anti-bolus function reduces the risk of unintended fluid delivery following pressure release in the infusion line.

Multiple infusion modes

• Flow-rate mode with settings in ml/min or ml/h;
• Time-based infusion;
• Body-weight-based dosing;
• Bolus function;
• KVO function;
• Purge function for filling the infusion line.

Monitoring and alarm system

The KL-702 continuously monitors the infusion process and signals critical events through audio and visual alarms. Alarm conditions include occlusion, near-empty syringe, end of program, low or depleted battery, AC power interruption, motor malfunction, syringe installation errors and other system conditions.

The pump also records infusion events in its internal history log. Adjustable occlusion sensitivity and separate channel alarms support closer monitoring of the two infusion lines.

Suitable for different clinical environments

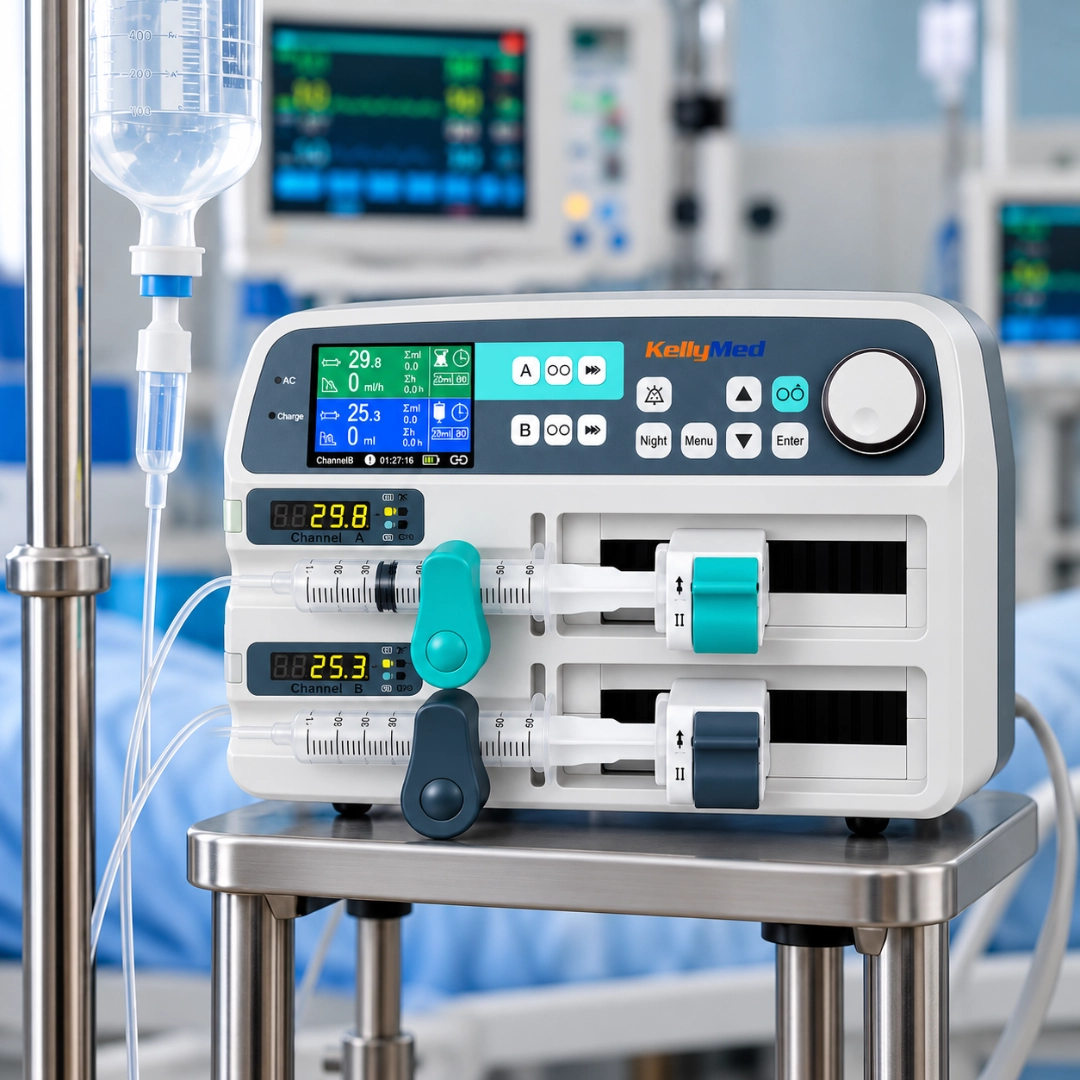

With its compact housing and rechargeable battery, the KL-702 can be used both as a stationary medical syringe pump and during patient transfer within a healthcare facility. The device is suitable for intensive care units, operating rooms, inpatient departments and outpatient settings where controlled syringe-based infusion is required.

Brightfield Healthcare KL-702 combines two independent infusion channels, a wide flow-rate range and programmable dosing modes in a compact medical syringe pump designed for continuous and controlled drug administration.
