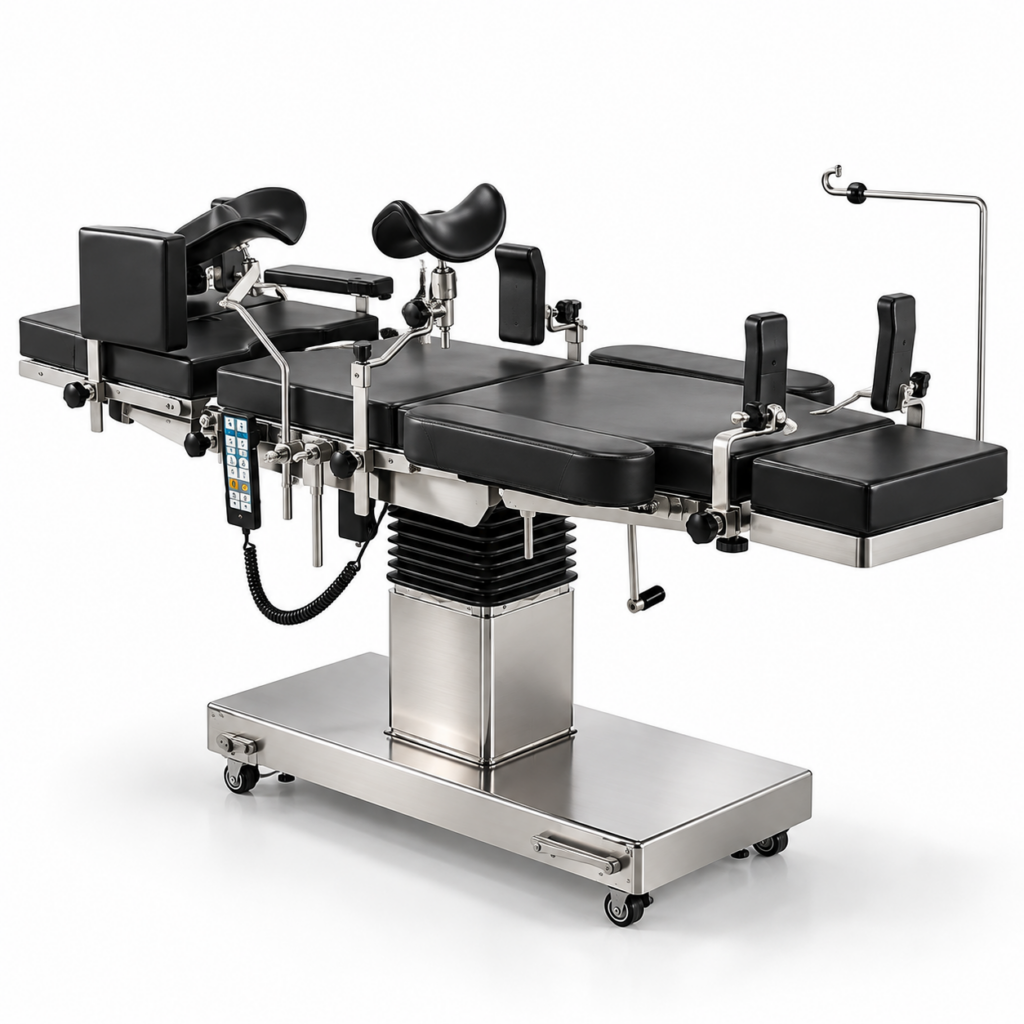

Electric Operating Table TDY-1
Reviews (0)Brightfield Healthcare TDY-1 is an electrically driven universal operating table with an X-ray translucent top and 300 mm longitudinal slide for C-arm imaging. A built-in battery covers up to 50 operations, the height ranges from 700 to 1000 mm and the table carries patients up to 200 kg.
Product Speciality
About product
Imaging Without Moving the Patient
Intraoperative X-ray is often slowed down by the table itself: the frame gets in the beam and staff have to shift the patient. The TDY-1 avoids this with a radiolucent top and a 300 mm longitudinal slide, which moves the patient over the base so the C-arm reaches the area of interest.
Electric Control and Battery Reserve
Positions are changed by electric drives from the handheld remote, so the team does not have to crank or pump. The built-in battery is rated for up to 50 operations, which keeps the table working when it is moved between rooms or the socket is out of reach.
Positioning Data
- Height – 700 to 1000 mm.
- Trendelenburg / reverse – 25° each way.
- Back section – up 75°, down 20°.
- Leg section – 15° / 90° / 90°.
- Kidney bridge – 110 mm.
- Top – 2070 × 550 mm, load up to 200 kg.
Standard Equipment
Delivered with an anaesthesia screen, lateral and shoulder supports, arm and leg supports, fixing clamps, the remote control and a mattress. An attachment kit for traumatology and orthopaedics can be ordered additionally.
Where It Is Used
- General and abdominal surgery
- Gynaecology and obstetrics
- Ophthalmology and ENT
- Urology and orthopaedics

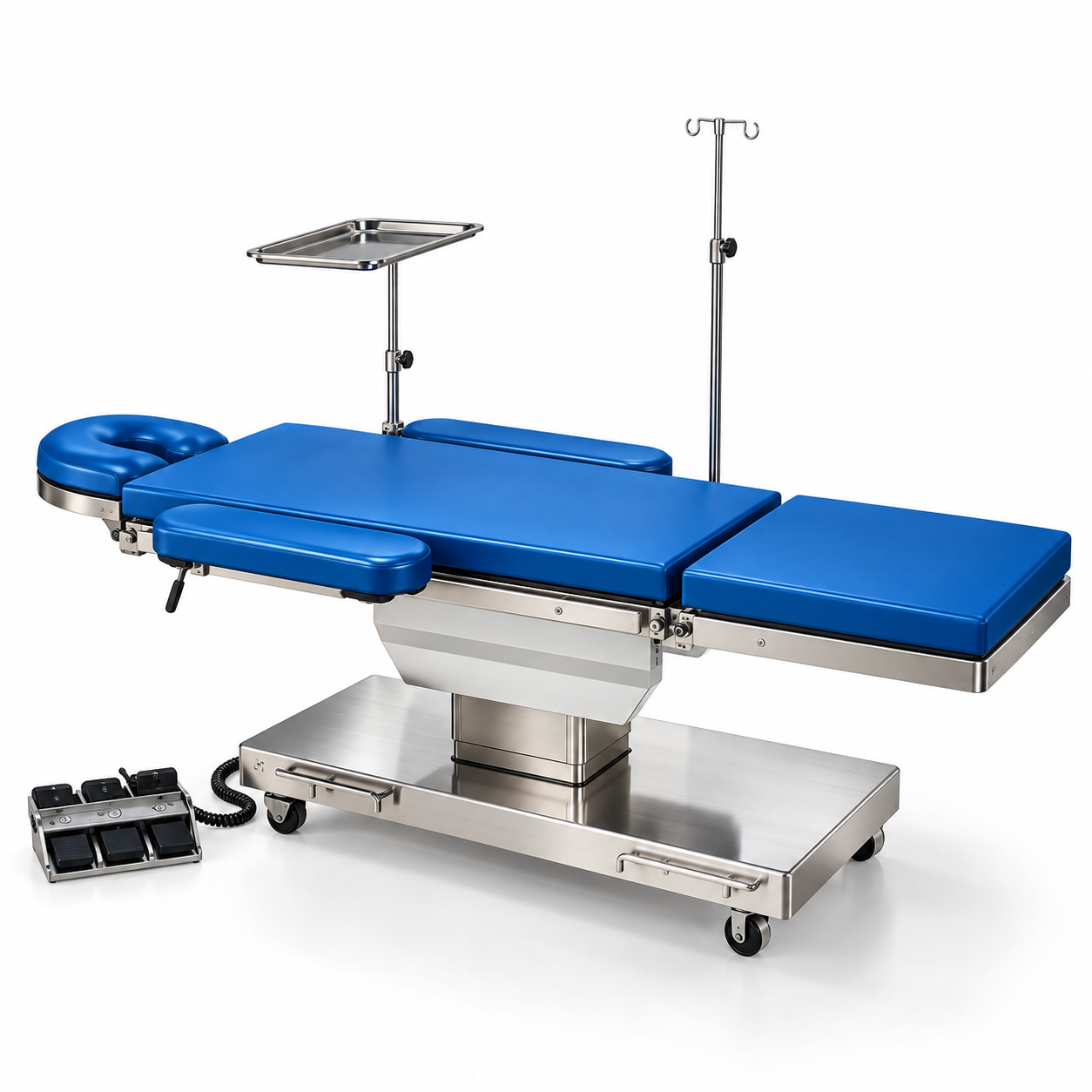

For heavier patients the TDY-2 raises the load limit to 250 kg and the slide to 350 mm, while the TDG is a dedicated low table for eye and ENT procedures.
