Electro-Hydraulic Operating Table TDY-G-1
Reviews (0)Brightfield Healthcare TDY-G-1 is an electro-hydraulic operating table that drops to an ultra-low 510 mm, which makes it well suited to neurosurgery and other procedures where the surgeon works close to the patient's head. It has an X-ray compatible top, a battery for up to 50 operations and a load capacity of 200 kg.
About product
Why the Lowest Position Matters
In neurosurgery the surgeon often sits at the head of the table and works through a microscope for hours. If the table cannot go low enough, the team ends up raising the chair or working with shoulders lifted. The TDY-G-1 starts at 510 mm and rises to 810 mm, so the operating field can be brought exactly to the level the surgeon needs.
Head, Back and Legs Adjusted Separately
- Headrest: 40° up, 90° down
- Back section: 80° / 20°
- Leg section: 15° / 90° / 90°
- Trendelenburg / reverse Trendelenburg: 25° / 25°
- Kidney bridge: 110 mm
This range lets the team adapt the table to the specifics of each operation rather than adapting the operation to the table.
Drive, Power and Imaging
The electro-hydraulic drive is operated with a remote control. A rechargeable battery is rated for up to 50 operations, and the top is compatible with X-ray systems for intraoperative imaging.
Frame and Capacity
The 2090 × 550 mm top carries patients up to 200 kg. The stainless steel construction withstands treatment with chemical disinfectants.
Supplied With
Anaesthesia screen, lateral and shoulder supports, arm and leg supports, nine fixing clamps, remote control and mattress. For trauma and orthopaedic cases a dedicated accessory kit can be added.

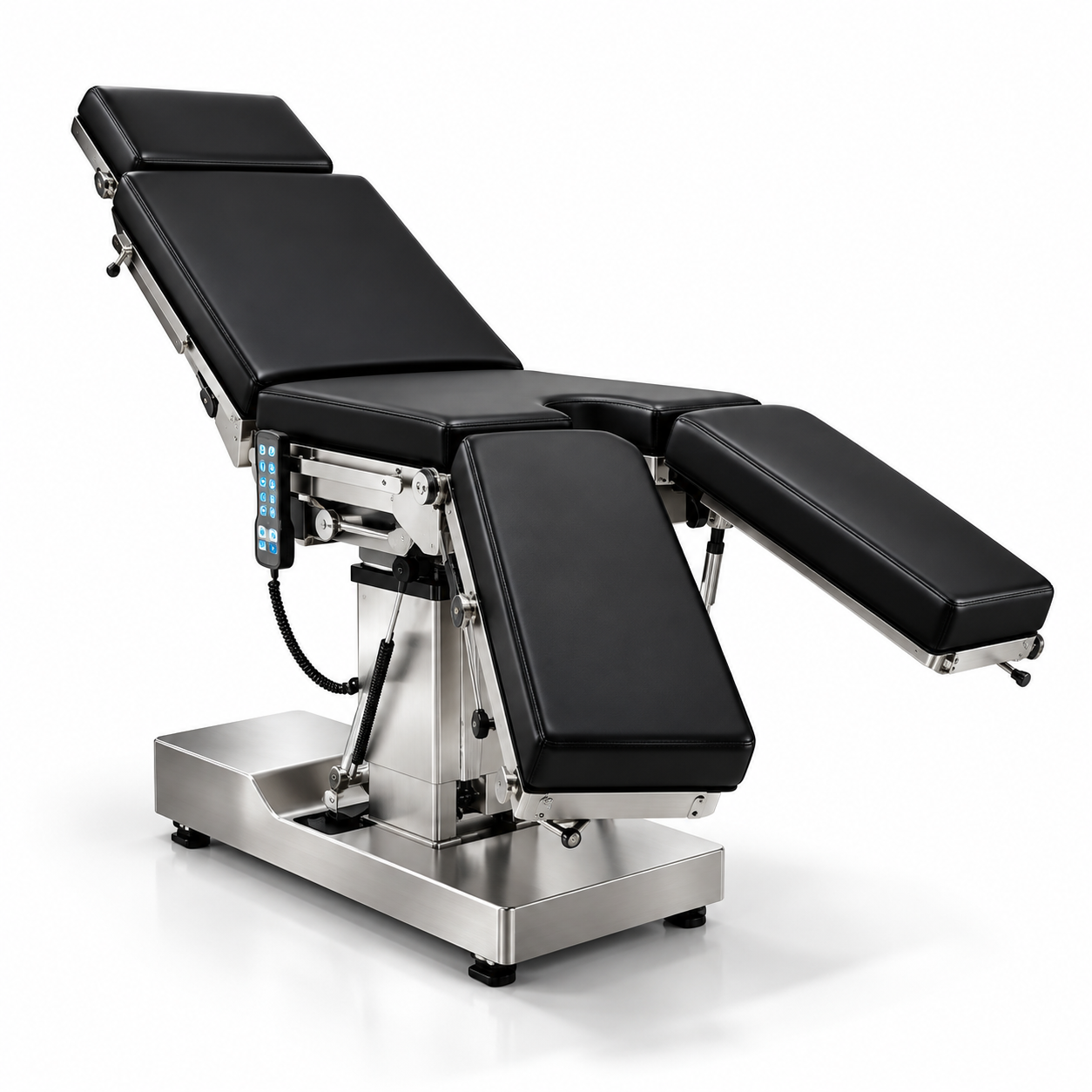

If maximum height range and a 250 kg load matter more than the low position, choose the TDY-Y-1.
