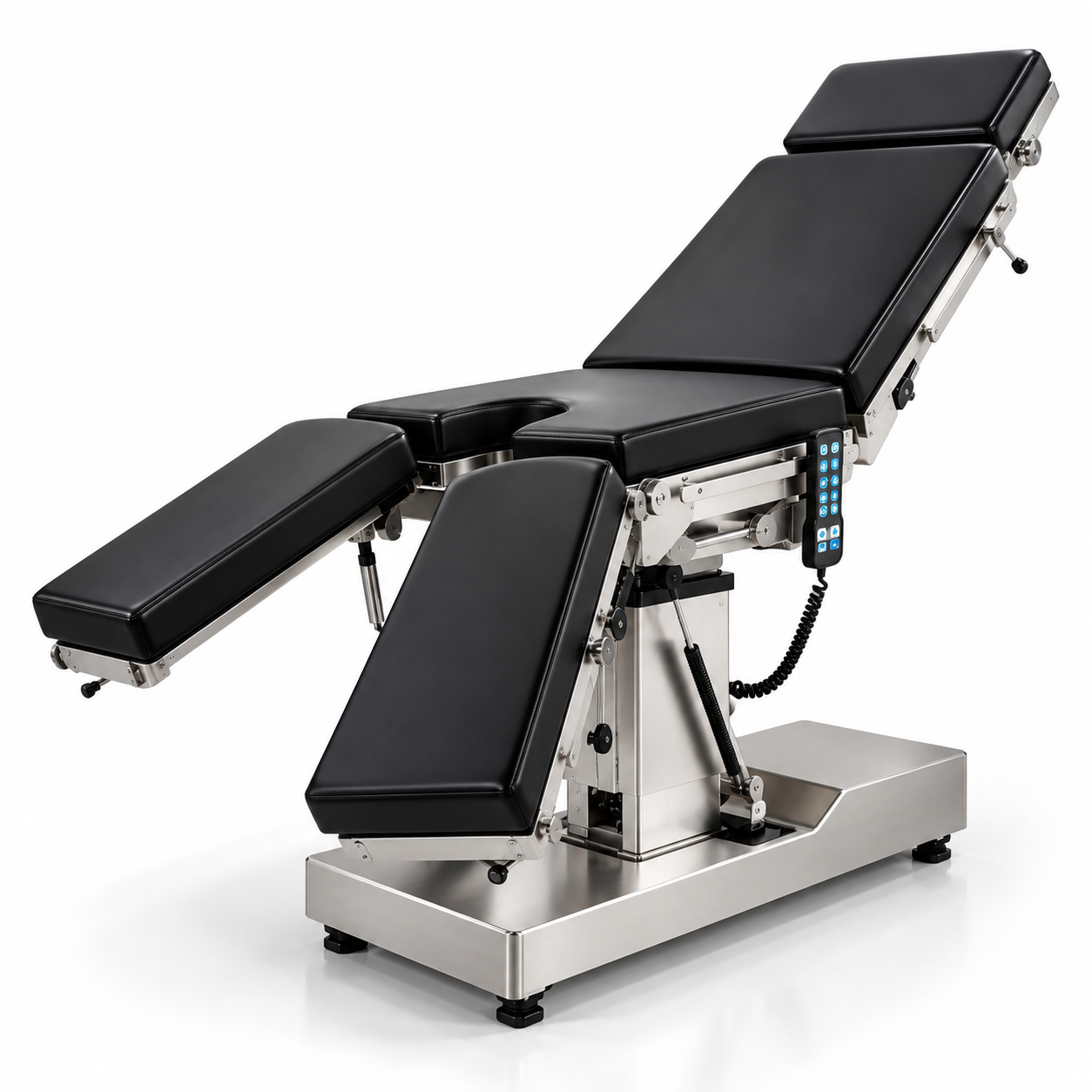

Electro-Hydraulic Operating Table TDY-Y-1
Reviews (0)Brightfield Healthcare TDY-Y-1 is an electro-hydraulic operating table with the widest positioning range in the series: height from 690 to 1090 mm, Trendelenburg 28° both ways and a back section that moves 85° up and 40° down. It carries up to 250 kg, slides 340 mm for the C-arm and runs on battery for up to 50 operations.
About product
Maximum Range in Every Direction
Some procedures need extreme postures: a steep head-down tilt for pelvic surgery, a deeply flexed back for spinal access, a very high table for a standing team. The TDY-Y-1 is built for that. Its height spans 400 mm, from 690 to 1090 mm, and the sections reach angles that most tables in the line do not.
Positioning in Figures
- Height: 690–1090 mm
- Trendelenburg / reverse Trendelenburg: 28° / 28°
- Headrest: 60° / 85°
- Back section: 85° / 40°
- Leg section: 15° / 90° / 90°
- Kidney bridge: 100 mm
Electro-Hydraulic Drive
Movements are powered electro-hydraulically and controlled from the remote or the panel on the table. The battery is rated for up to 50 operations, so the table is not tied to a wall socket.
Ready for Fluoroscopy
The top is compatible with X-ray systems and shifts 340 mm lengthwise, opening space for a C-arm under the area of surgery.
Load and Hygiene
The 1960 × 500 mm top supports patients up to 250 kg. Metal parts are stainless steel that tolerates chemical disinfection.
Included
Anaesthesia screen, lateral and shoulder supports, arm and leg supports, nine fixing clamps, remote control and mattress. A traumatology and orthopaedics kit is available separately.
Neurosurgical teams that need an ultra-low position should look at the TDY-G-1, which goes down to 510 mm.
