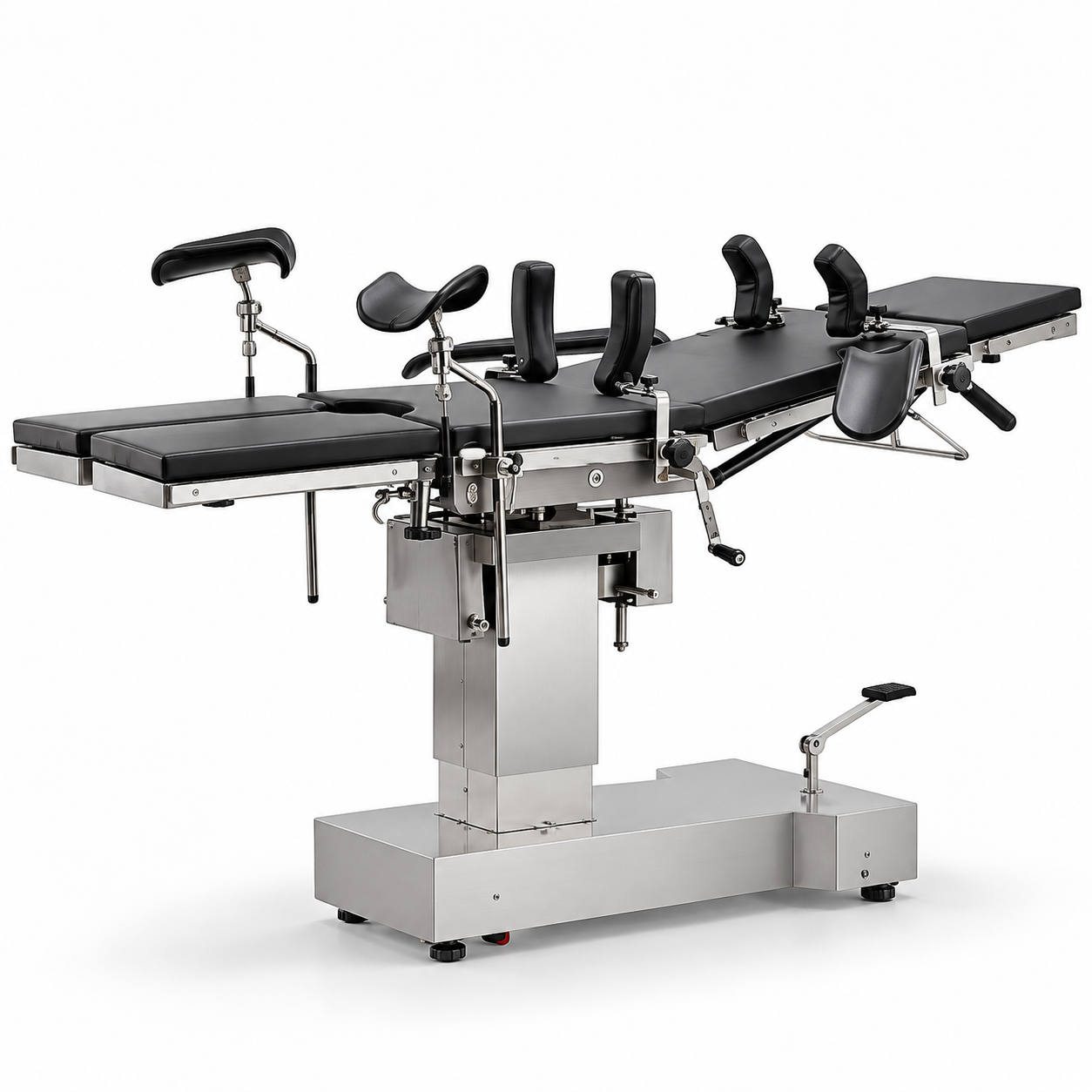

Operating Table TS-1
Reviews (0)Brightfield Healthcare TS-1 is a hydraulic operating table for general, abdominal and laparoscopic surgery, gynaecology, ENT, ophthalmology, urology, proctology and orthopaedics. Height from 750 to 950 mm is set with a foot pedal, the top tilts 20° to either side, and the standard kit already includes an anaesthesia screen plus body, arm, shoulder and leg supports.
Product Speciality
About product
One Table for a Mixed Surgical Schedule
Theatres that run general, gynaecological, ENT and orthopaedic cases on the same day need a table that changes posture quickly between patients. The TS-1 covers that range with a hydraulic system, and its height is controlled by a foot pedal, so the surgeon’s hands remain free.
Positioning Range
- Height 750–950 mm – adjusted with the foot pedal.
- Trendelenburg 20° / reverse 30° – lowers the head end or the feet end of the patient.
- Lateral tilt 20° – to the left and to the right.

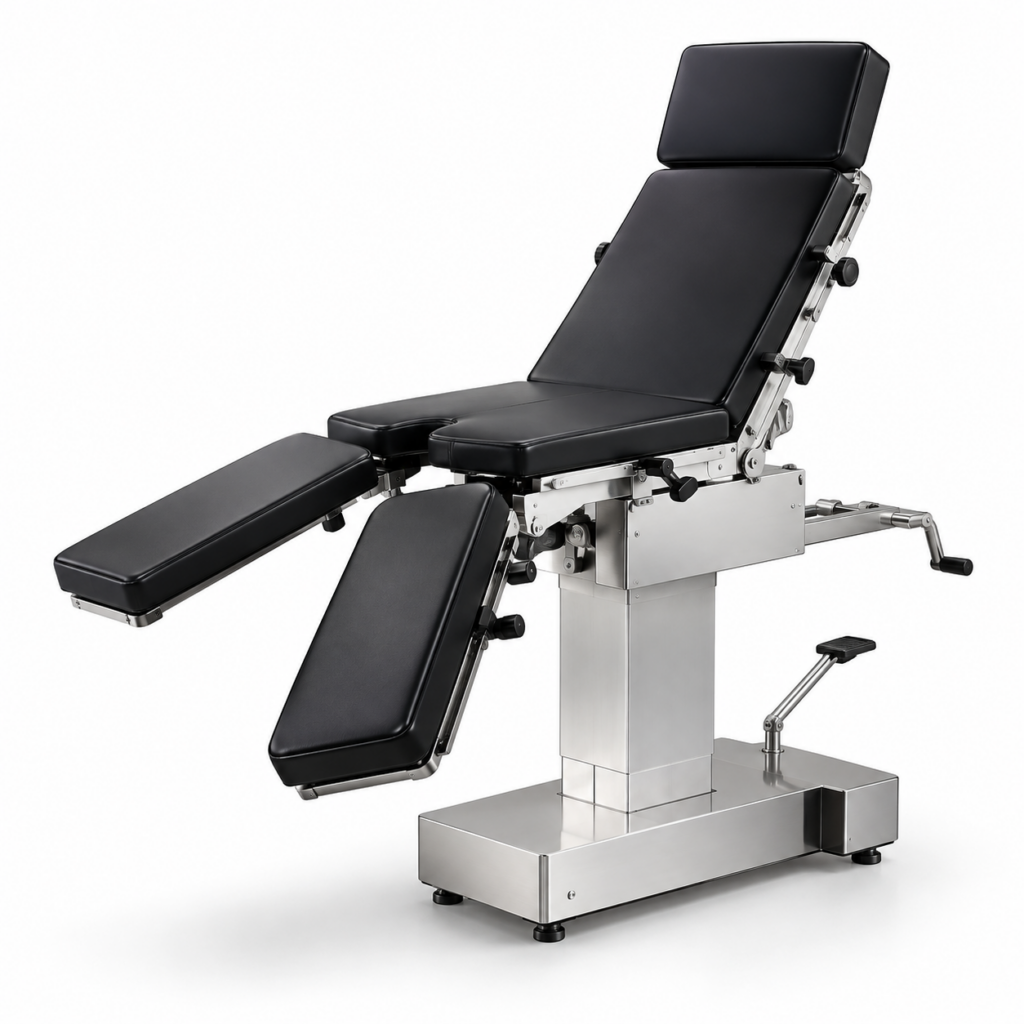

- Back section 75° / 30°, headrest 45° / 90° – upper body and head placed independently.
- Leg section 15° / 90° / 90° – for lithotomy and leg-down positions.
- Kidney bridge 120 mm – raises the flank for lateral and renal approaches.
Supplied Ready for Work
The standard set includes an anaesthesia screen, two lateral body supports, two arm supports, two shoulder supports, two leg supports, six fixing clamps and a mattress. A traumatology and orthopaedics accessory kit can be added as an option.
Built for Theatre Hygiene
All metal parts are made of stainless steel that tolerates treatment with chemical disinfectants. The top measures 1970 × 500 mm and carries patients weighing up to 170 kg.
Specialities
- General and abdominal surgery, laparoscopy
- Gynaecology and obstetrics
- Ophthalmology and ENT
- Urology and proctology
- Orthopaedics
When a higher load and a longer top are required, the TY-1 offers 200 kg capacity and a 2000 mm tabletop.
