Oxygen concentrator AE-8-NW
Reviews (0)The AE-8-NW is a high-flow oxygen concentrator from Brightfield Healthcare for use with anesthesia machines and mechanical ventilators. It delivers an oxygen flow of 0–20 L/min with an outlet oxygen concentration of 93% ±3% and outlet pressure of 0.14–0.4 MPa. High-pressure oxygen concentrators of this type can supply oxygen to 5–7 patients simultaneously.
About product

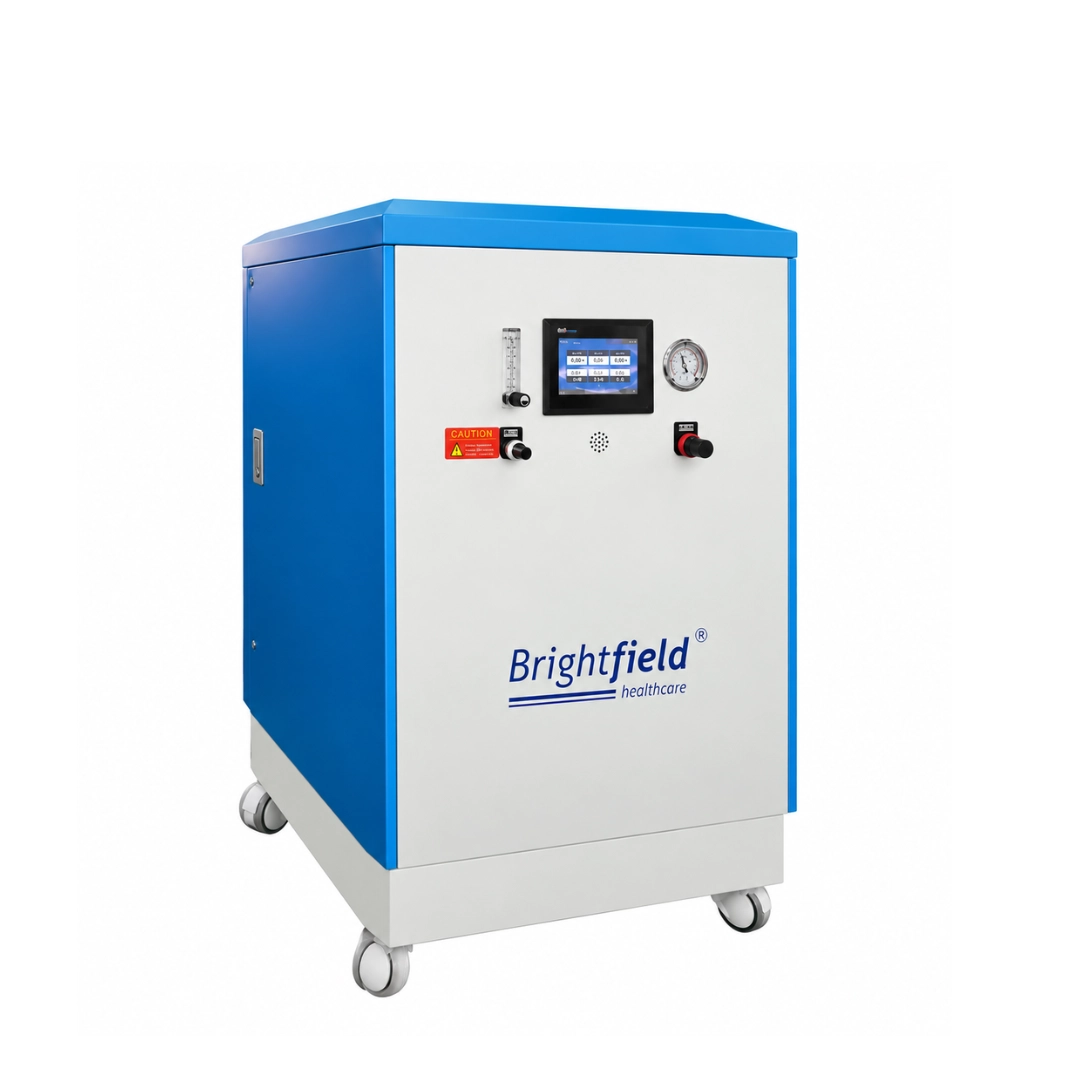

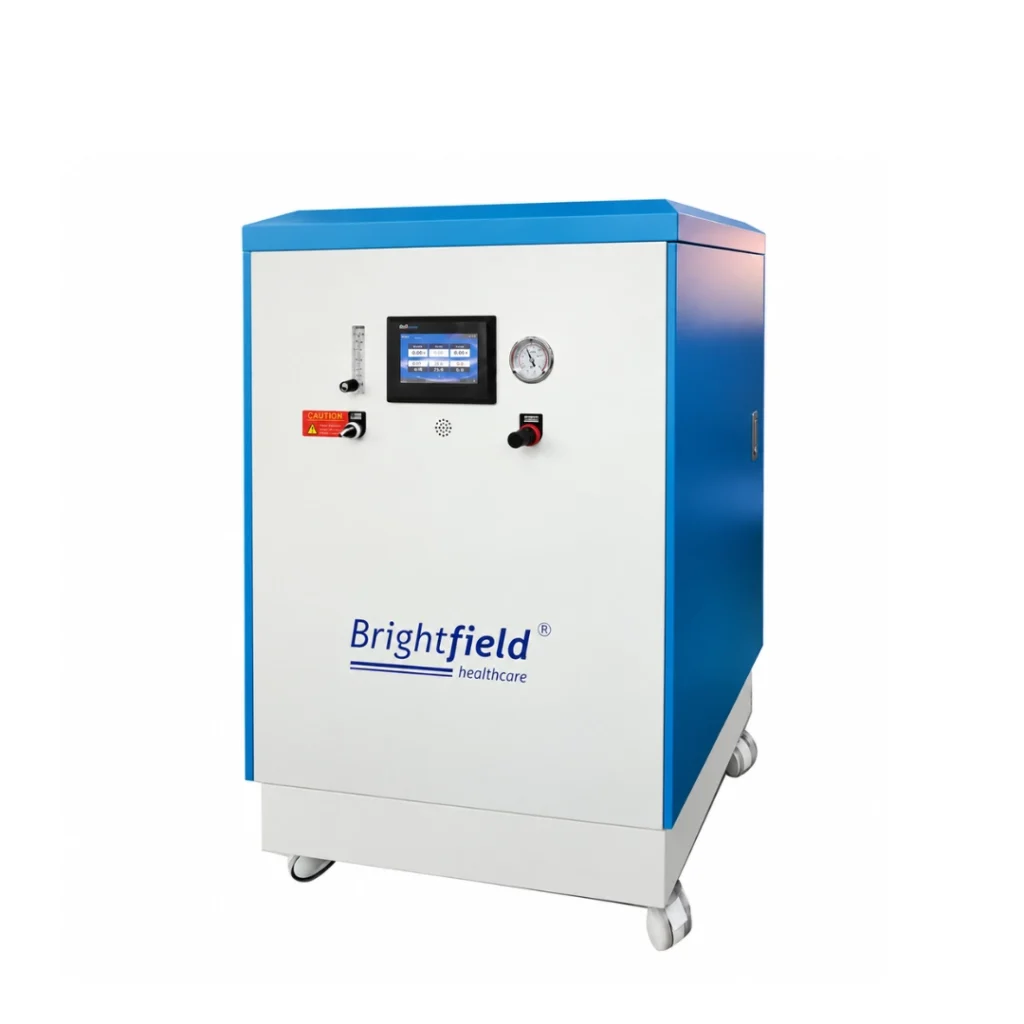

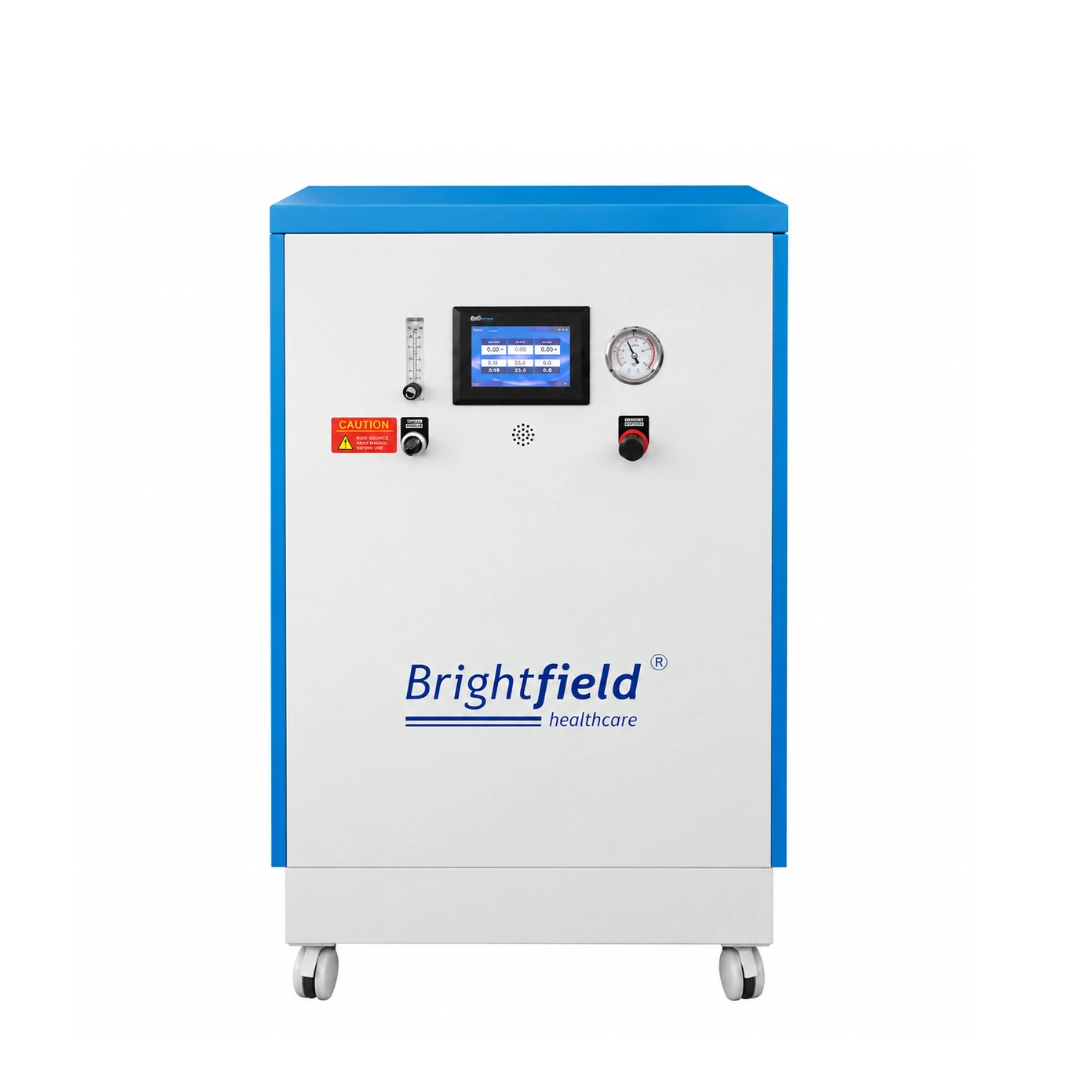

AE-8-NW High-Flow Oxygen Concentrator
The AE-8-NW is a high-flow oxygen concentrator by Brightfield Healthcare designed for use with anesthesia machines and mechanical ventilators. The concentrator provides an oxygen flow of up to 20 L/min, with an oxygen concentration of 93% ±3% at the outlet and outlet pressure from 0.14 to 0.4 MPa.
The AE-8-NW is part of the Brightfield Healthcare range of high-pressure oxygen concentrators for medical respiratory equipment. The high-flow system can supply oxygen simultaneously to 5–7 patients, depending on the required flow and operating conditions.
Monitoring and operating control
The concentrator has an LCD for monitoring the main operating parameters. The display shows the start time, operating pressure, current operating time and total operating time. The operating time can be set from 10 minutes to 40 hours.
Built-in sensors monitor the power supply, temperature and pressure. The system provides alarm signals in the event of a power supply failure or low/high pressure. An automatic humidifier is also included.
Application

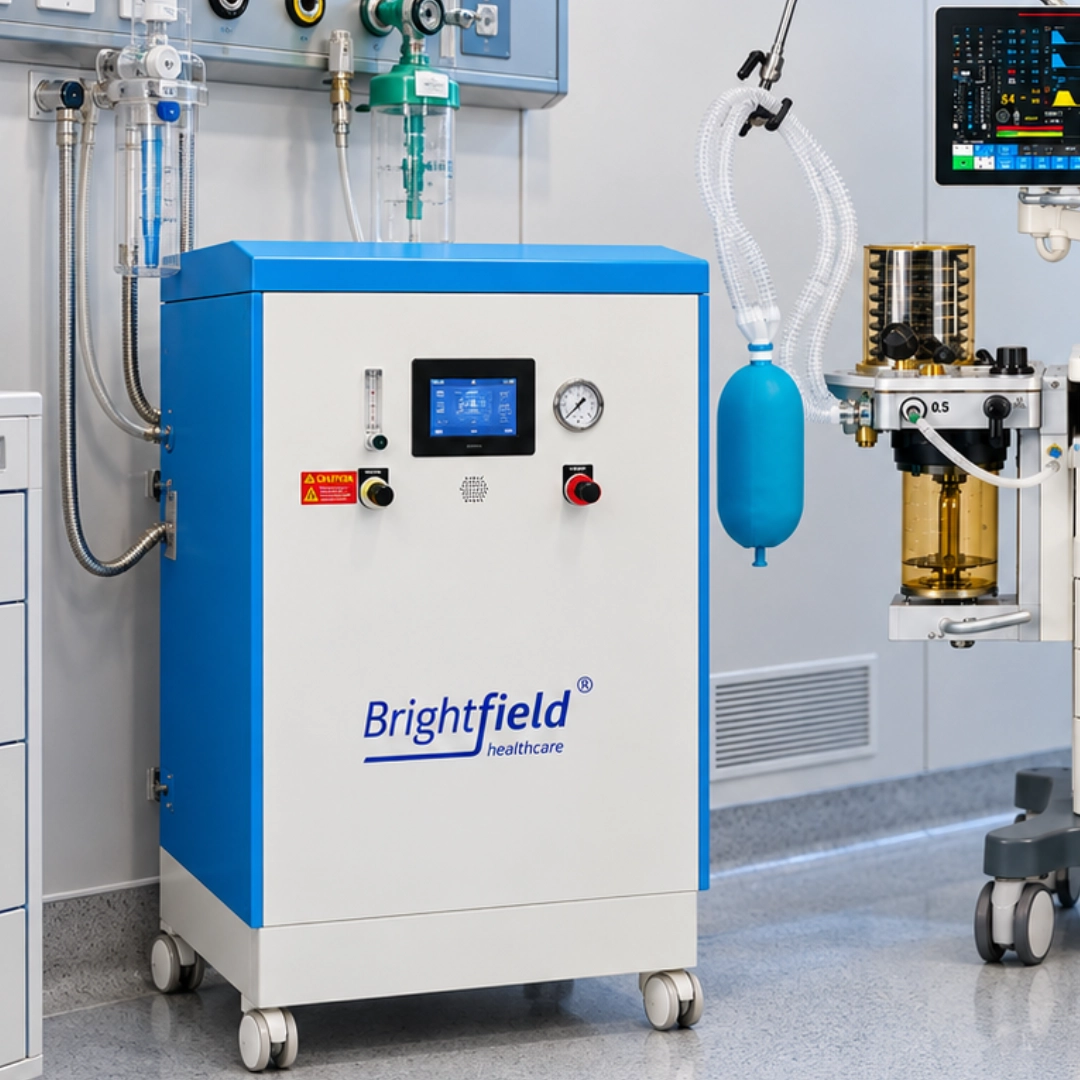

The AE-8-NW is used as an oxygen source for anesthesia machines and mechanical ventilators in medical facilities.
Key technical characteristics
- Oxygen flow rate: 0–20 L/min
- Oxygen concentration at the outlet: 93% ±3%
- Outlet pressure: 0.14–0.4 MPa
- Power supply: 220 V, 50 Hz (±1 Hz)
- Alarm signals for power failure and low/high pressure
- LCD monitoring of operating parameters and working time
- Operating time setting: 10 minutes to 40 hours
- Automatic humidifier
- Noise level: ≤55 dB
- Power consumption: 600/850 W
- Dimensions: 830 × 360 × 660 mm
- Weight: 45 kg
The AE-8-NW is designed for medical environments where a high-flow oxygen source is required for respiratory and anesthesia equipment. Its monitoring and alarm functions provide control over the main operating parameters during use.
