Holter ECG Recorder H12B-plus

Brightfield Healthcare H12B-plus: 12-Lead Long-Term ECG Monitoring

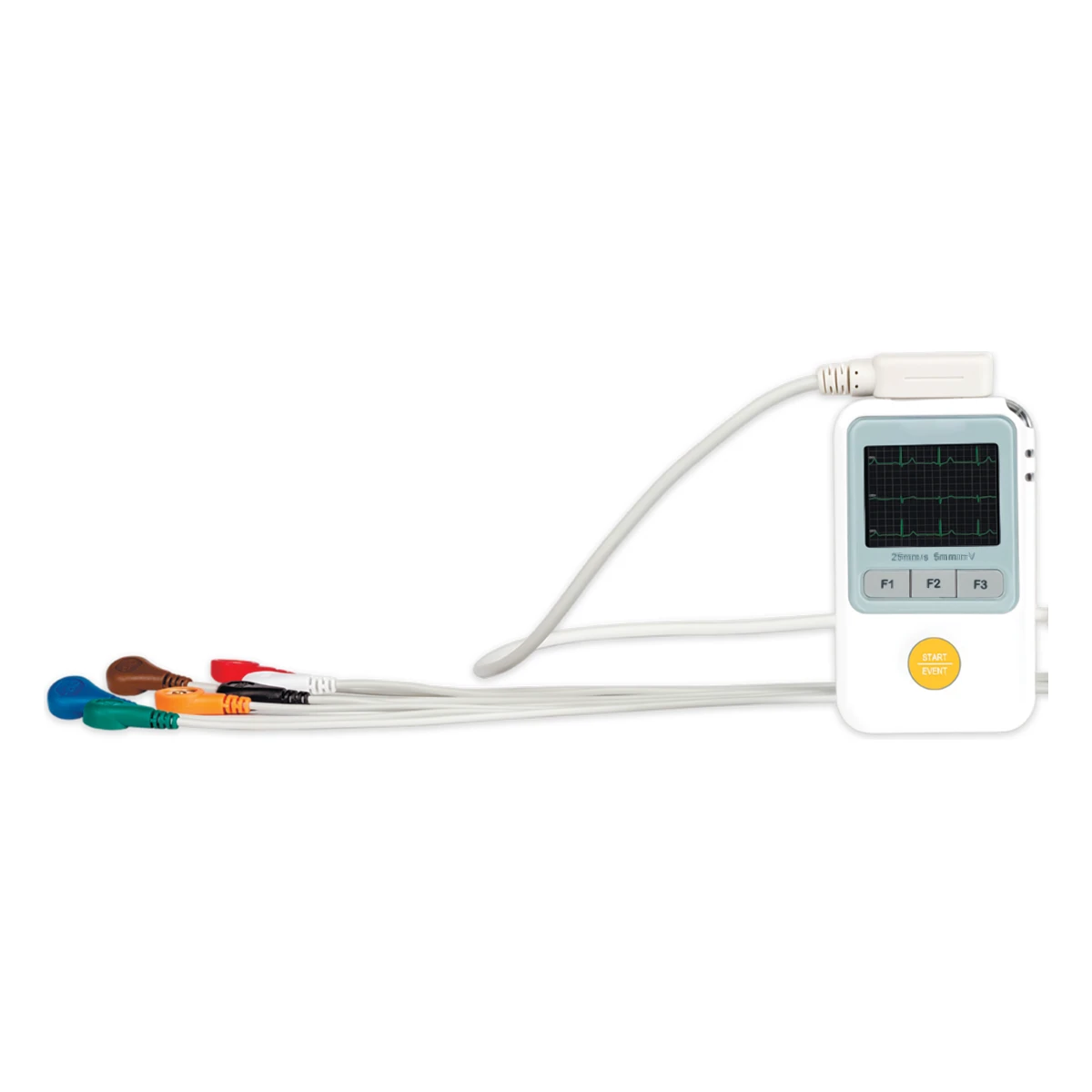

The H12B-plus Holter ECG recorder is designed for long-term continuous monitoring of the heart in the patient’s normal daily rhythm. It records 12 leads via a 10-lead patient cable for up to 72 hours, giving the cardiologist a complete picture of cardiac activity, including episodes that do not appear on a standard resting ECG.

Accurate Recording in a Lightweight Body

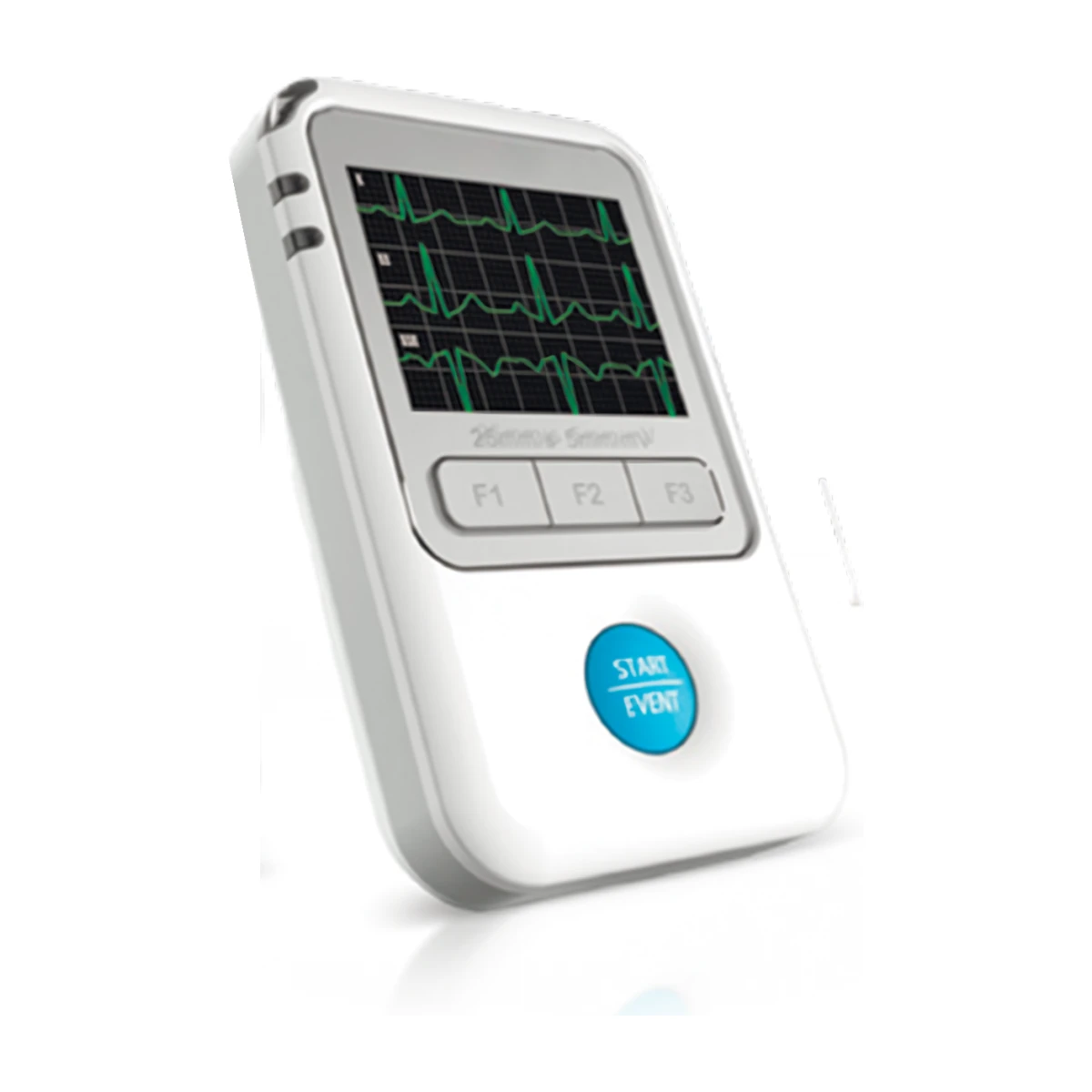

With compact dimensions of 98 × 59 × 21 mm and a weight of only 78 g, the recorder is comfortable to wear throughout the entire monitoring period and does not limit the patient’s everyday activity.

• 12-lead recording – a full set of leads through a 10-lead cable for detailed ECG analysis.
• Up to 72 hours of recording – continuous long-term monitoring for reliable diagnostics.
• 1.77″ OLED display – clear signal check and electrode placement control during setup.
• 2 × AAA power supply – standard alkaline batteries and quick USB data transfer to a PC.

Event Button and Automated Analysis

The event button lets the patient mark the exact moment symptoms occur, such as chest pain, dizziness or palpitations. The software supports fast data download, automatic arrhythmia search, ST segment analysis and the generation of summary reports for the cardiologist.

Available analysis options include ST-T, QRS, HRV, HRT, DC, TWA, SAP, Lorenz plot rhythm analysis and arrhythmia analysis. High sampling accuracy ensures clear detail of P-QRS-T complexes and reliable pacemaker spike detection.

Clinical Applications

• Intensive care units
• Inpatient departments
• Preoperative screening
• Sports medicine

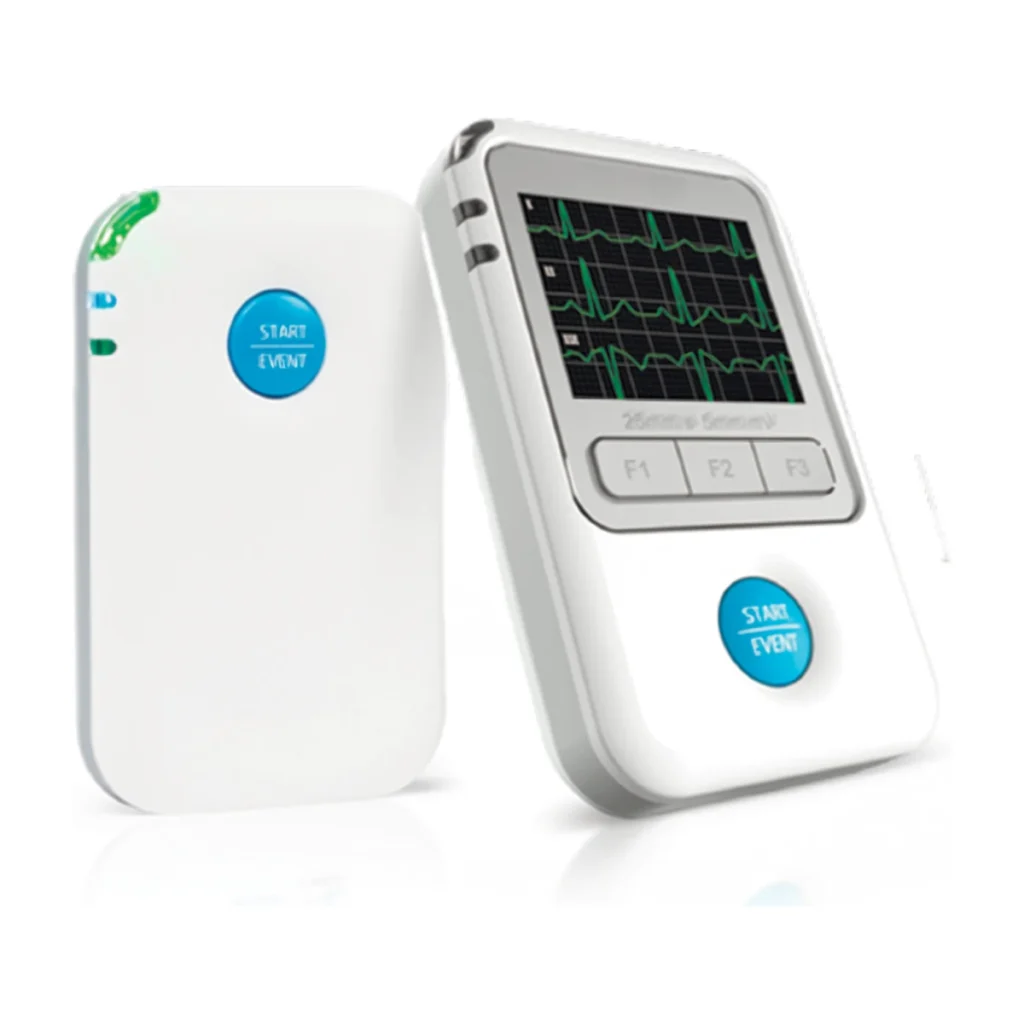

The H12B-plus and H3B-plus range makes it possible to choose a Holter recorder for the specific clinical task: the H12B-plus provides a full 12-lead picture for detailed diagnostics, while the H3B-plus is designed for extended monitoring of up to 7 days.
