Radial Shock Wave Professional RSWP-1 – Shock Wave Therapy Device
Reviews (0)The Brightfield Therapy RSWP-1 Radial Shock Wave Professional is a medical shock wave therapy device for non-invasive treatment of musculoskeletal conditions in physiotherapy, orthopedics, sports medicine, and rehabilitation. The system generates radial acoustic waves with adjustable energy from 60 to 185 mJ, a working frequency of 1–22 Hz, and pressure up to 6 bar. Three interchangeable treatment heads with diameters of 6, 15, and 25 mm allow precise application to different anatomical areas. Its ergonomic handpiece, selectable operating modes, and intuitive control panel support efficient clinical procedures.
Product Speciality
About product
RSWP-1 Radial Shock Wave Therapy Device for Physiotherapy and Rehabilitation
The Brightfield Therapy RSWP-1 Radial Shock Wave Professional is a compact medical device for radial extracorporeal shock wave therapy (rESWT). Developed for professional clinical practice, it allows physiotherapists and rehabilitation specialists to deliver controlled acoustic pulses to selected musculoskeletal structures.
Radial shock wave therapy is widely used in orthopedics, traumatology, rehabilitation, and sports medicine. The method applies mechanical acoustic pulses to the treatment area and may be included in therapeutic programs for managing musculoskeletal pain and supporting tissue recovery.
Adjustable Radial Shock Wave Energy
The RSWP-1 shock wave therapy system delivers acoustic pulse energy from 60 to 185 mJ, with a working frequency adjustable between 1 and 22 Hz. The device operates with radial pressure of up to 6 bar, allowing practitioners to select treatment parameters according to the anatomical region and clinical protocol.
The system supports continuous and pulsed operating modes. These settings allow the clinician to control the delivery of acoustic pulses during treatment and adapt the procedure to different therapeutic requirements.
Three Interchangeable Treatment Heads

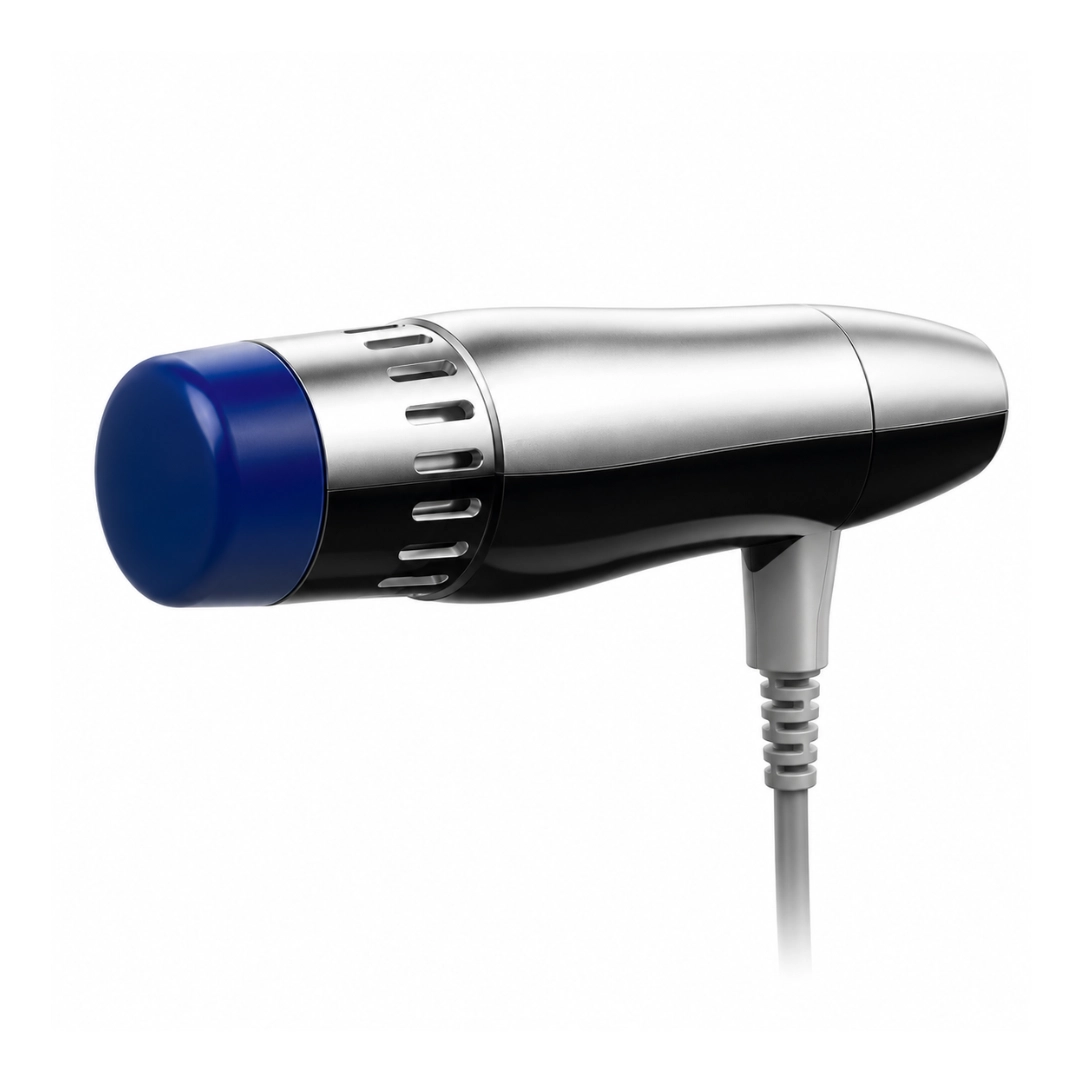

The RSWP-1 features an applicator with three interchangeable treatment heads measuring 6 mm, 15 mm, and 25 mm in diameter.
The different head sizes allow clinicians to work with smaller, localized treatment areas or broader anatomical regions. This makes it possible to select an appropriate contact surface depending on the location and size of the treatment area.
The applicator is designed for consistent acoustic wave distribution and stable contact with the patient’s skin during treatment.
Ergonomic Handpiece for Clinical Procedures
The RSWP-1 applicator has an ergonomic design that allows practitioners to maintain a comfortable grip while working at different angles and positions.
An integrated shock-absorbing mechanism reduces mechanical recoil during operation, helping limit vibration transmitted to the operator’s hand. The treatment heads are designed to maintain effective contact with the selected anatomical region.
Intuitive Controls and Treatment Settings
The Brightfield Therapy RSWP-1 features a control panel with an informative display for selecting and monitoring treatment parameters.
The interface allows healthcare professionals to access operating settings, adjust treatment intensity, and manage shock wave delivery according to the selected procedure.
The tabletop control unit is compact, measuring 170 × 315 × 390 mm and weighing 3.5 kg. Its dimensions make it suitable for use in physiotherapy rooms, rehabilitation centers, and orthopedic treatment facilities.
Clinical Applications of RSWP-1 Shock Wave Therapy
The Radial Shock Wave Professional RSWP-1 can be incorporated into treatment programs in several medical specialties:
- Orthopedics and Traumatology: Radial shock wave treatment as part of conservative management of selected musculoskeletal disorders.
- Physiotherapy: Non-invasive acoustic wave therapy for localized musculoskeletal treatment.
- Rehabilitation: Adjunctive therapy within individualized recovery programs for muscles, tendons, and surrounding soft tissues.
- Sports Medicine: Treatment of selected overuse-related musculoskeletal complaints and support for rehabilitation following sports injuries.
Treatment parameters, the number of sessions, and the suitability of radial shock wave therapy should be determined by a qualified healthcare professional according to the clinical indication and contraindications.
RSWP-1 – Professional Radial Shock Wave Therapy Equipment
The Brightfield Therapy RSWP-1 provides adjustable acoustic energy, three treatment head sizes, and convenient operating controls in a compact system. Its configuration supports a range of radial shock wave therapy procedures in orthopedic, sports medicine, physiotherapy, and rehabilitation settings.
