Reprocessor ScopeJET A2
Reviews (0)ScopeJET is an automatic endoscope reprocessor from Brightfield Ukraine designed for low-temperature washing and high-level disinfection of two flexible endoscopes per cycle. The system has a 14-liter processing bath, automatic leak-tightness testing, double rinsing, two water filters and an integrated UV lamp. An integrated computer controls the processing cycle and supports up to eight configurable profiles, while automatic dosing, a 4-inch touchscreen and built-in printer support controlled and documented endoscope reprocessing.
Product Speciality
About product
Automatic Endoscope Reprocessor for Two Flexible Endoscopes

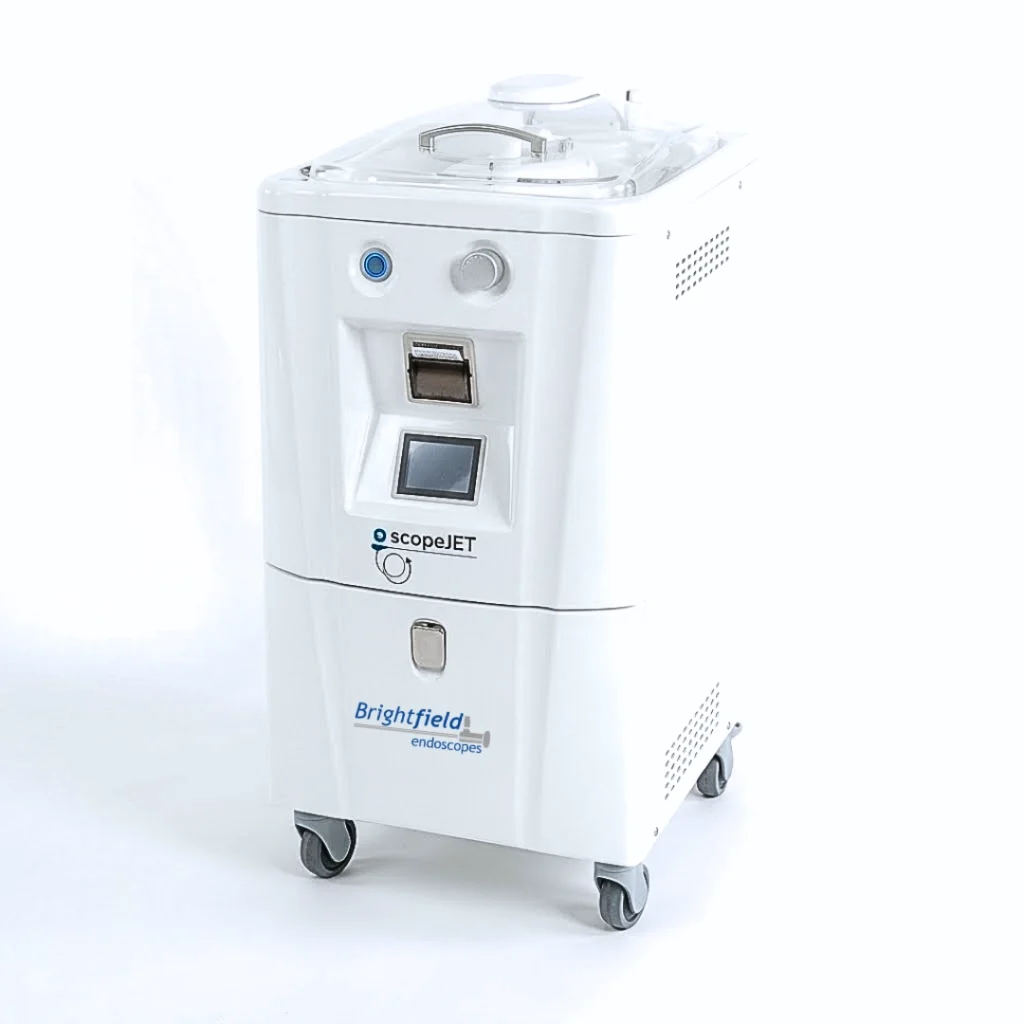

ScopeJET is an automatic endoscope reprocessor from Brightfield Ukraine designed for low-temperature washing and high-level disinfection of two flexible endoscopes per cycle. The system has a 14-liter processing bath and is designed for endoscopy units that need to process two endoscopes within one cycle.
The automated processing cycle controls the main washing, disinfection and rinsing stages according to the selected program. Endoscope leak-tightness is checked automatically during processing, while the sealed lid with a perimeter gasket helps maintain the closed processing chamber.
Key Advantages of ScopeJET
- Processing of Two Endoscopes per Cycle — the 14-liter processing bath is designed for simultaneous washing and disinfection of two flexible endoscopes.
- Automatic Leak-Tightness Testing — the system automatically checks endoscope tightness during the processing cycle.
- Double Rinsing — an additional rinsing stage helps remove residual disinfectant from the endoscopes after disinfection.
- Eight Configurable Processing Profiles — the integrated computer supports up to eight individually configured processing profiles.
- Two-Stage Water Filtration and UV Treatment — two filters and an integrated ultraviolet lamp are incorporated into the water circulation system.
- Automatic Processing Fluid Dosing — detergent, alcohol and disinfectant are supplied automatically according to the selected program.
Washing and Disinfection of Two Endoscopes
ScopeJET is configured for simultaneous processing of two flexible endoscopes. The endoscopes are connected to the system before the cycle starts, after which the integrated computer controls the programmed processing sequence.
The system performs low-temperature washing and high-level disinfection, followed by rinsing. The user can set the washing and disinfection time according to the selected processing requirements.
The double-rinse mode adds an additional rinsing stage after disinfection to help remove disinfectant residues from the endoscopes.
Automatic Leak-Tightness Testing

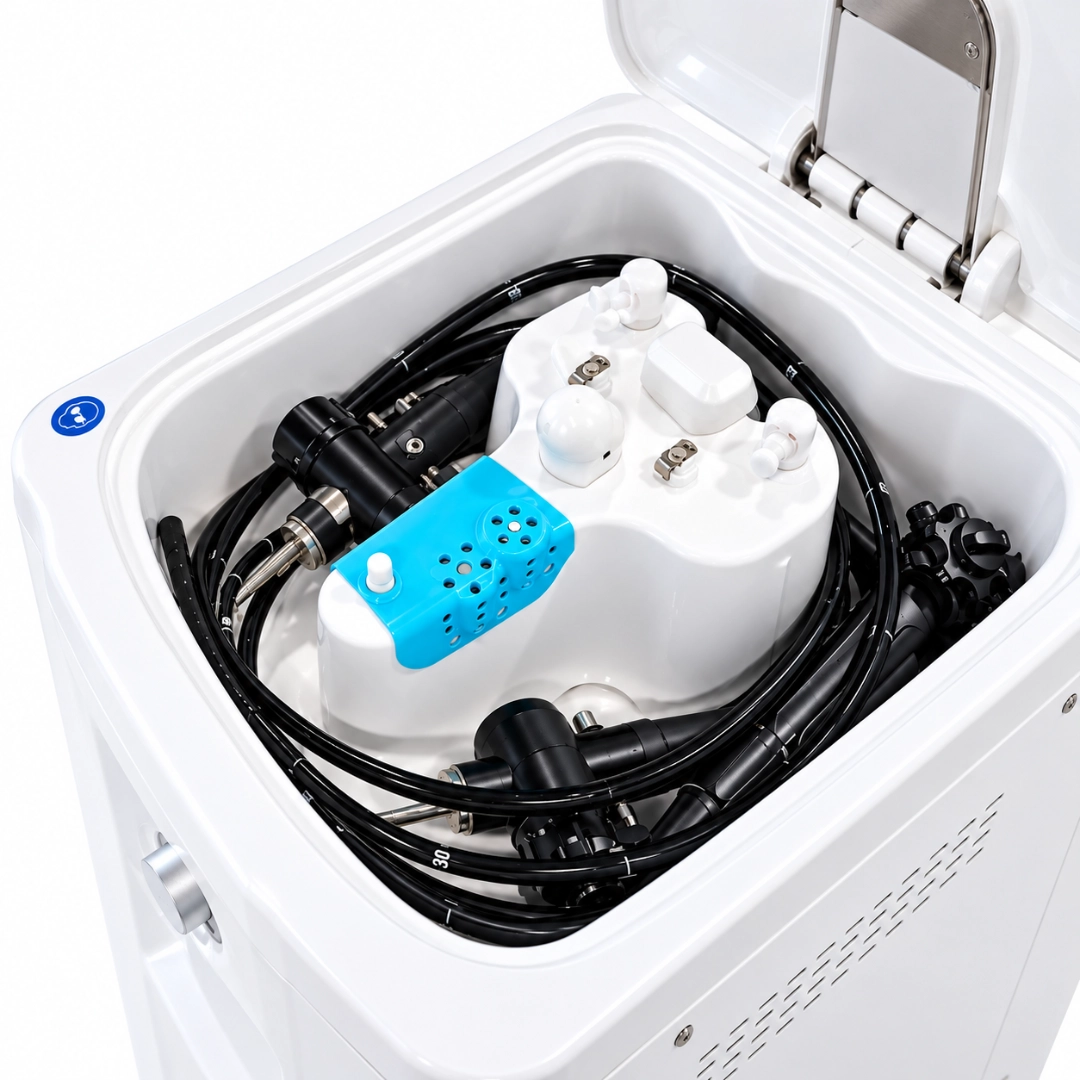

ScopeJET performs an automatic leak-tightness test of the connected endoscopes during the processing cycle. The processing chamber is closed with a sealed lid featuring a gasket around the entire perimeter.
Computer-Controlled Processing
An integrated computer controls the processing sequence and the supply of processing fluids. The user can configure up to eight individual processing profiles for different endoscope reprocessing requirements.

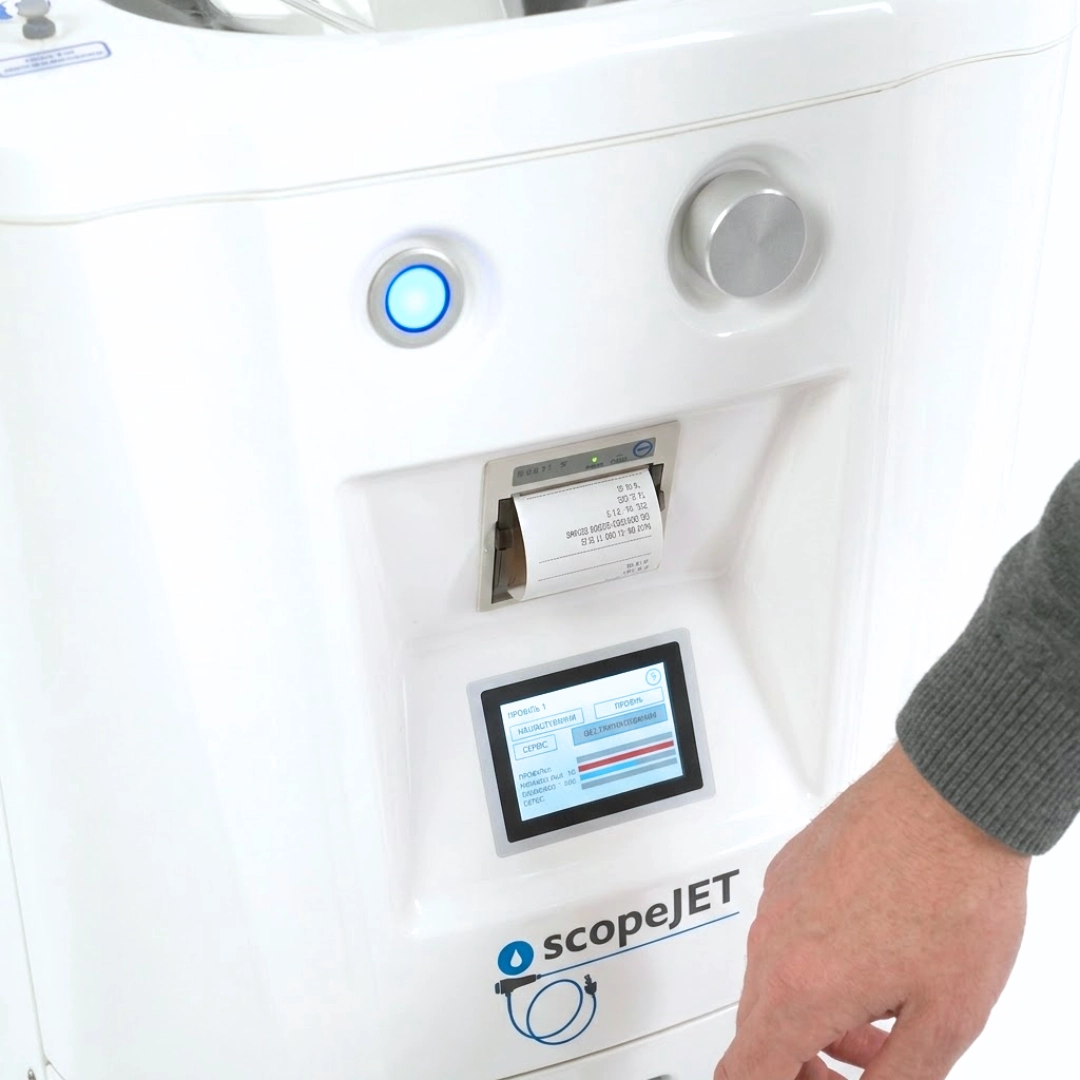

A 4-inch touchscreen is used to control the system and select the required processing profile.
Automatic Dosing of Processing Fluids

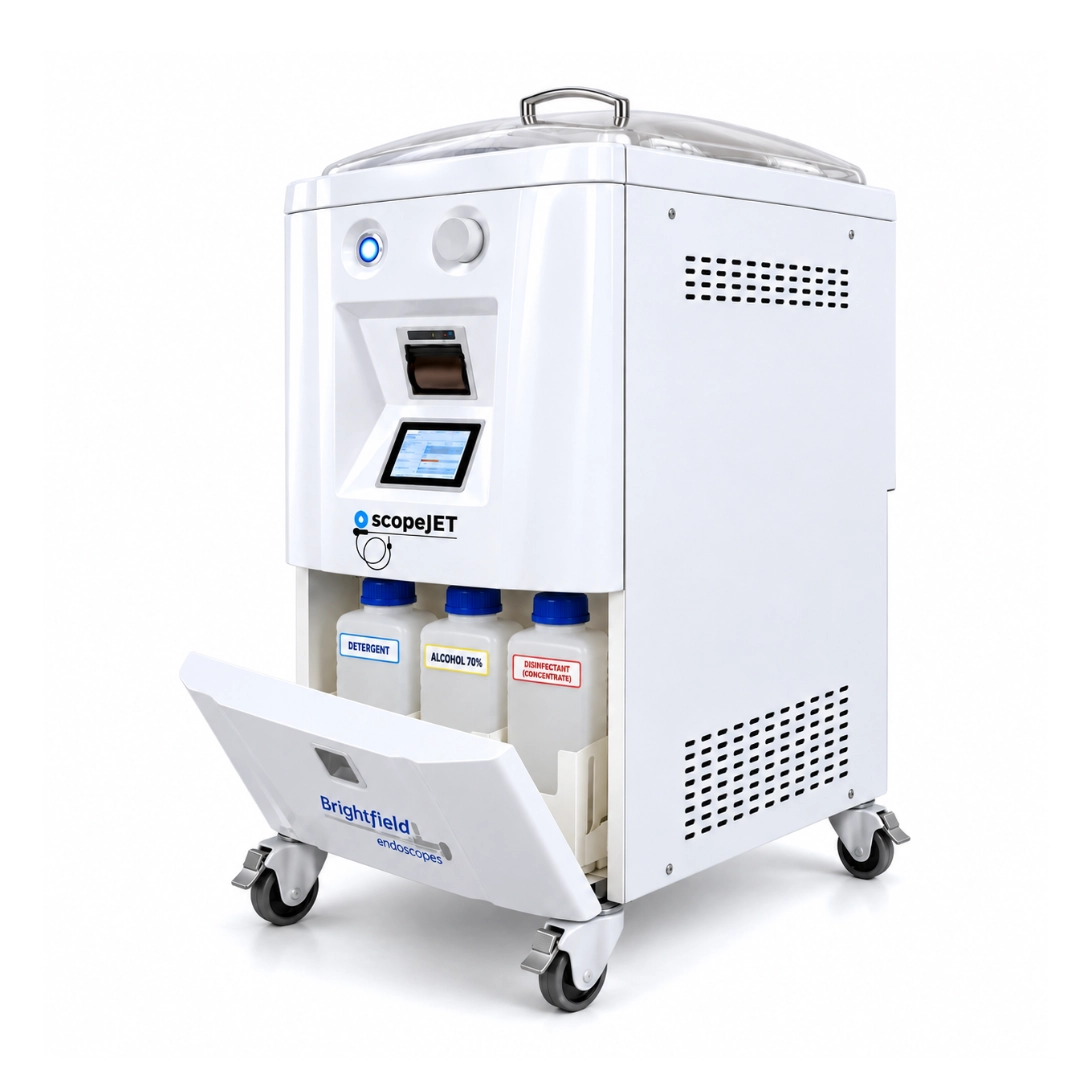

The lower compartment contains tanks for disinfectant, detergent and alcohol. Processing fluids are supplied automatically and controlled by the selected program.
The disinfectant tank has a capacity of 15 liters, while the detergent and alcohol tanks have a capacity of 1 liter each.
Water Filtration and UV Treatment

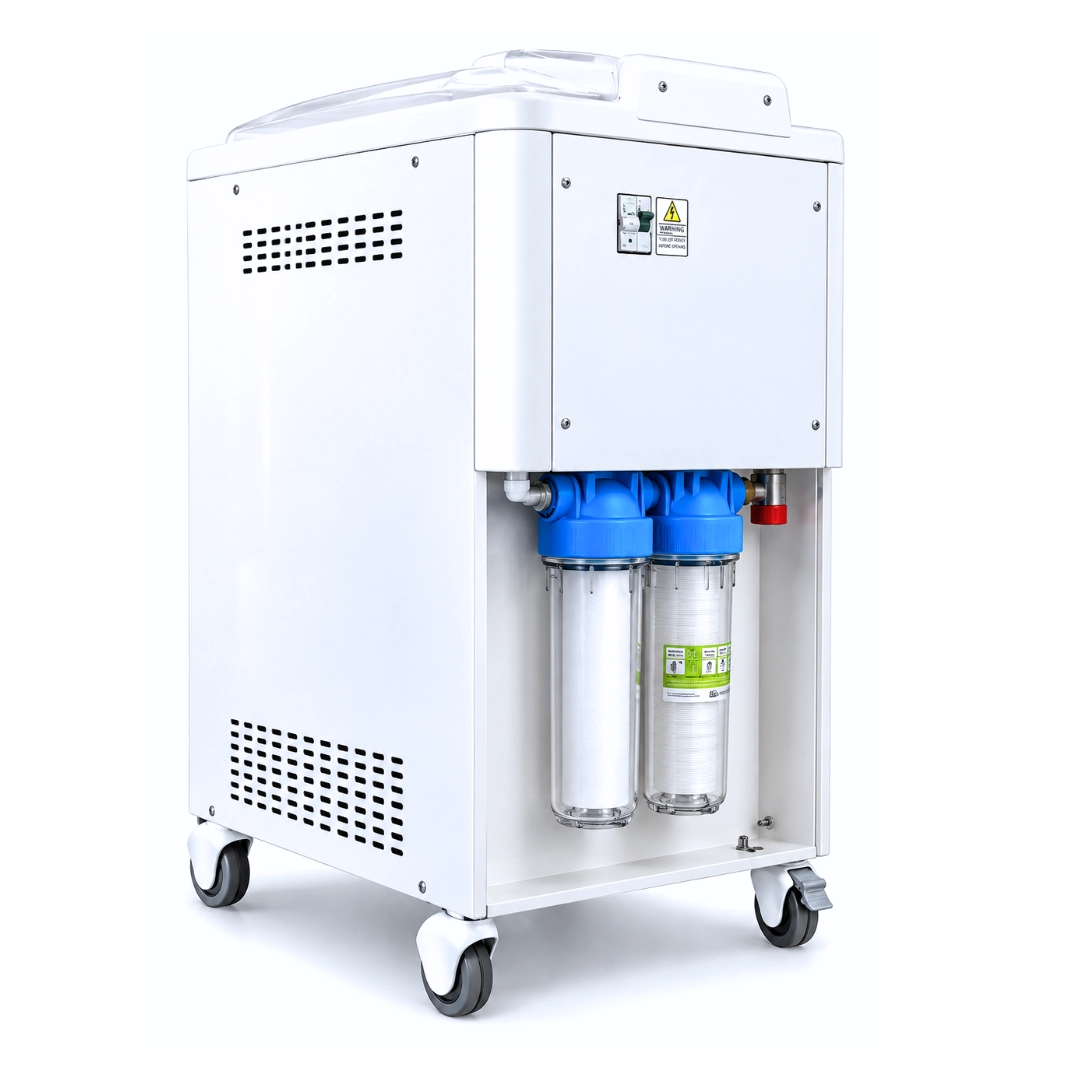

The water circulation system incorporates two filters and an integrated ultraviolet lamp. An additional air filter is also included in the system.
Water filtration and UV treatment are integrated into the automated processing sequence.
Cycle Documentation
The built-in printer produces a report after each completed processing cycle. This provides a printed record of the endoscope washing and disinfection procedure.
Technical Characteristics
- Low-temperature washing and high-level disinfection
- Two flexible endoscopes per cycle
- 14-liter processing bath
- Automatic leak-tightness testing
- Double rinsing mode
- Adjustable washing and disinfection time
- Up to eight configurable processing profiles
- Integrated computer for process control
- 4-inch touchscreen
- Built-in printer for cycle documentation
- Two filters in the water circulation system
- Integrated UV lamp
- Additional air filter
- Automatic dosing of disinfectant, detergent and alcohol
- Disinfectant tank: 15 liters
- Detergent tank: 1 liter
- Alcohol tank: 1 liter
- Power supply: AC 220–240 V, 50/60 Hz
- Power consumption: 400 W
- Dimensions (W × H × D): 450 × 640 × 940 mm
- Weight: 65 kg
Compact Automated Processing for Two Endoscopes
ScopeJET combines automated washing and high-level disinfection of two flexible endoscopes with automatic leak-tightness testing, double rinsing, programmable processing profiles, automatic dosing, water filtration, UV treatment and cycle documentation. The 14-liter bath and two-endoscope configuration are designed for endoscopy units that need to process two flexible endoscopes within a single cycle.
