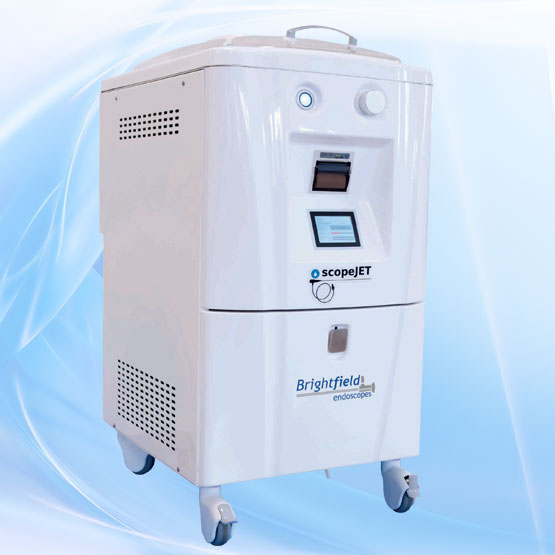

Reprocessor ScopeJET A1

Automatic Endoscope Reprocessor for One Flexible Endoscope

ScopeJet A1U is an automatic endoscope reprocessor designed for low-temperature washing and high-level disinfection of one flexible endoscope per cycle. The system is designed for endoscopy units that require a standardized and documented approach to flexible endoscope reprocessing.

Automated processing controls the main washing, disinfection and rinsing stages according to the selected parameters. Continuous leak-tightness monitoring is performed during the processing cycle, while the built-in printer documents the completed procedure.

Key Advantages of ScopeJet A1U

• Processing of One Endoscope per Cycle — the 7-liter processing bath is configured for washing and high-level disinfection of one flexible endoscope.
• Continuous Leak-Tightness Monitoring — the system monitors the endoscope for loss of tightness throughout the processing cycle.
• Double Rinsing — an additional rinsing stage helps remove residual disinfectant from the endoscope after disinfection.
• Two-Stage Water Filtration and UV Treatment — two filters and an integrated ultraviolet lamp are incorporated into the water circulation system.
• Controlled Access to Settings — PIN-code protection restricts access to the system settings.
• Personnel and Equipment Identification — an integrated scanner is used to identify personnel and equipment.
• Reduced Disinfectant Consumption — the 7-liter processing bath and 8-liter disinfectant tank support economical use of processing fluids, with savings of up to 30%.

Washing and Disinfection of One Flexible Endoscope

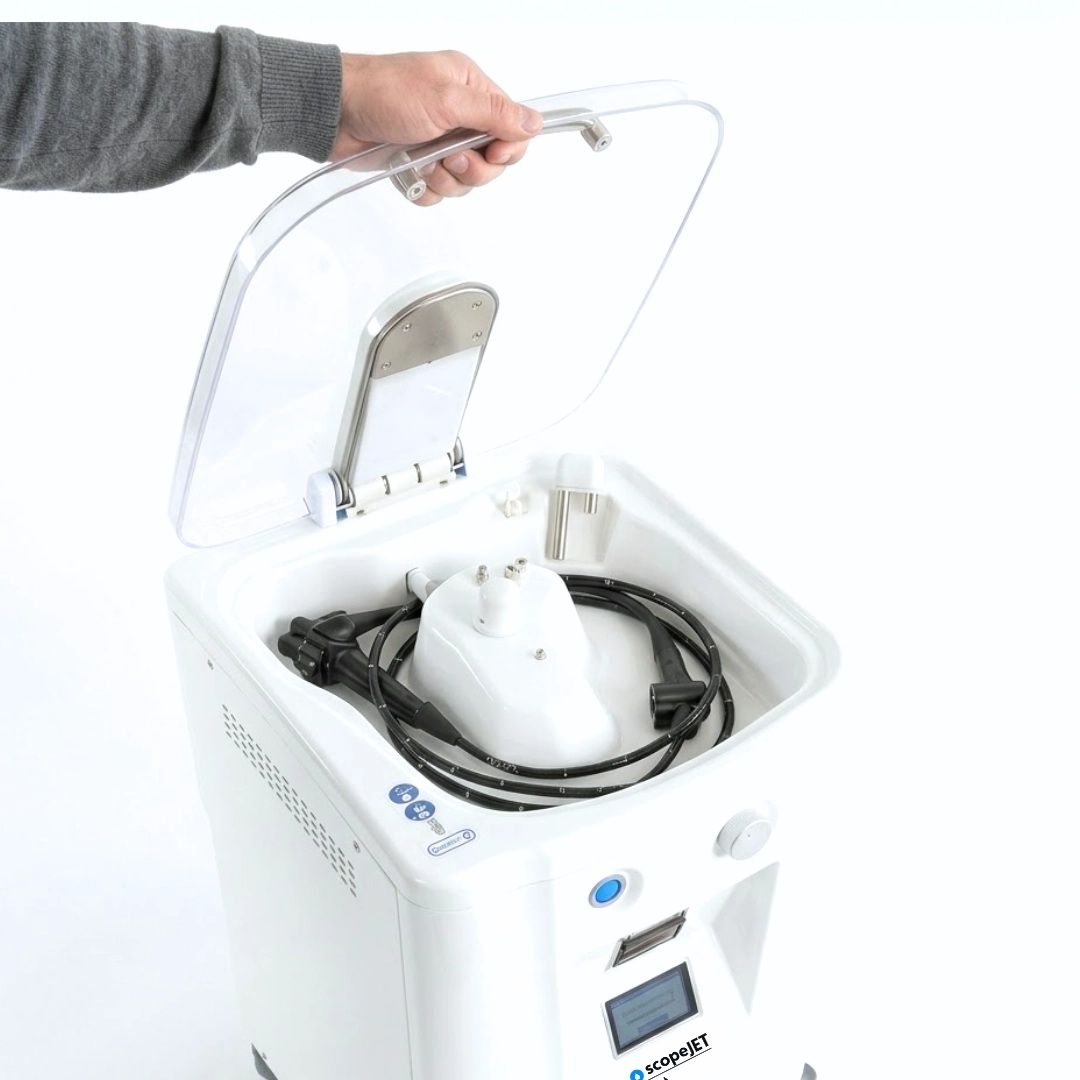

ScopeJet A1U is configured to process one flexible endoscope per cycle and is suitable for flexible endoscopes from different manufacturers. Washing and high-level disinfection are performed within an automated processing cycle.

The user can set the washing time, disinfection time and number of rinses. The double-rinse mode adds an additional rinsing stage after disinfection to help remove residual disinfectant from the endoscope.

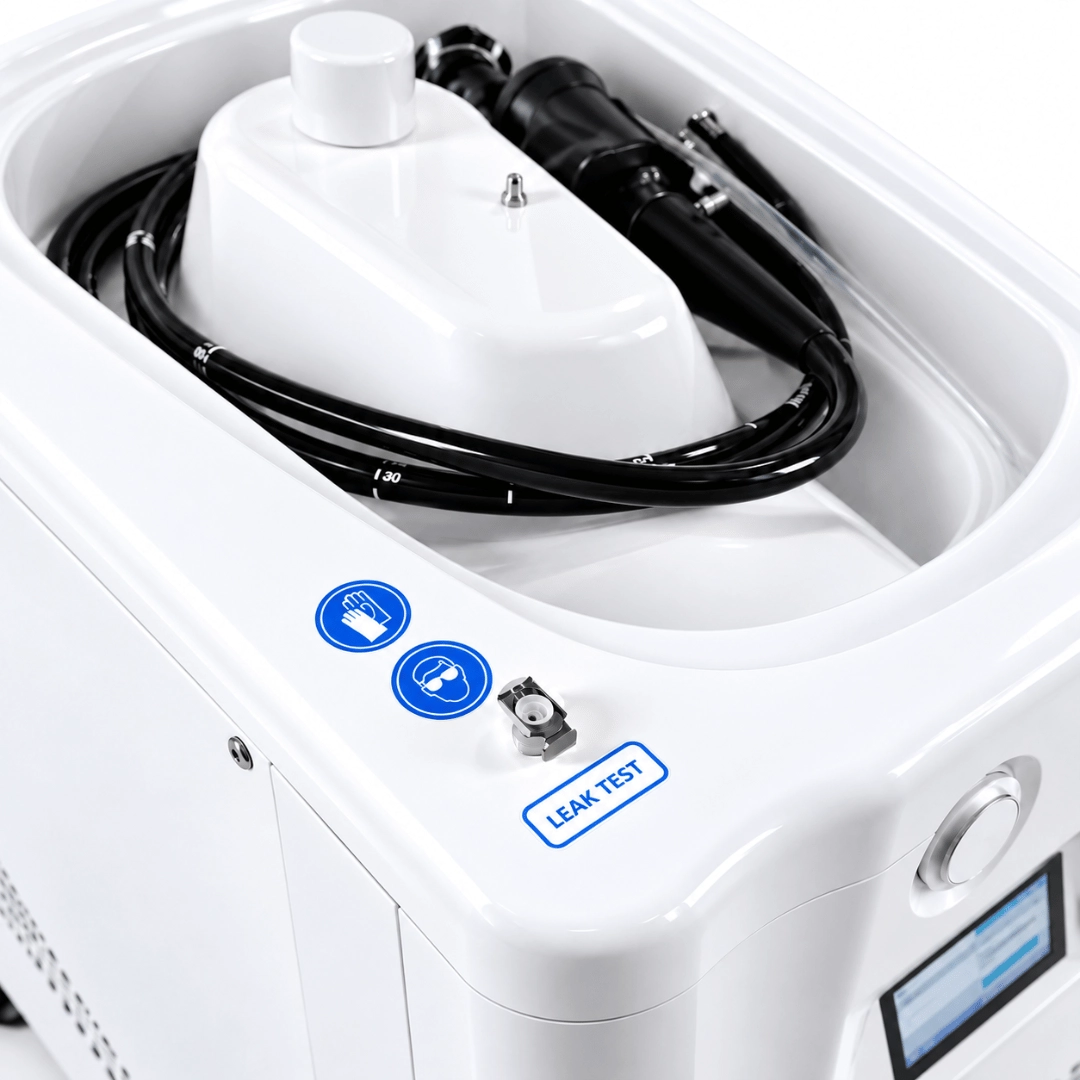

Continuous leak-tightness monitoring is performed throughout the processing cycle. The automatic opening and closing of the reprocessor lid takes place after the processing procedure.

Control and Cycle Documentation

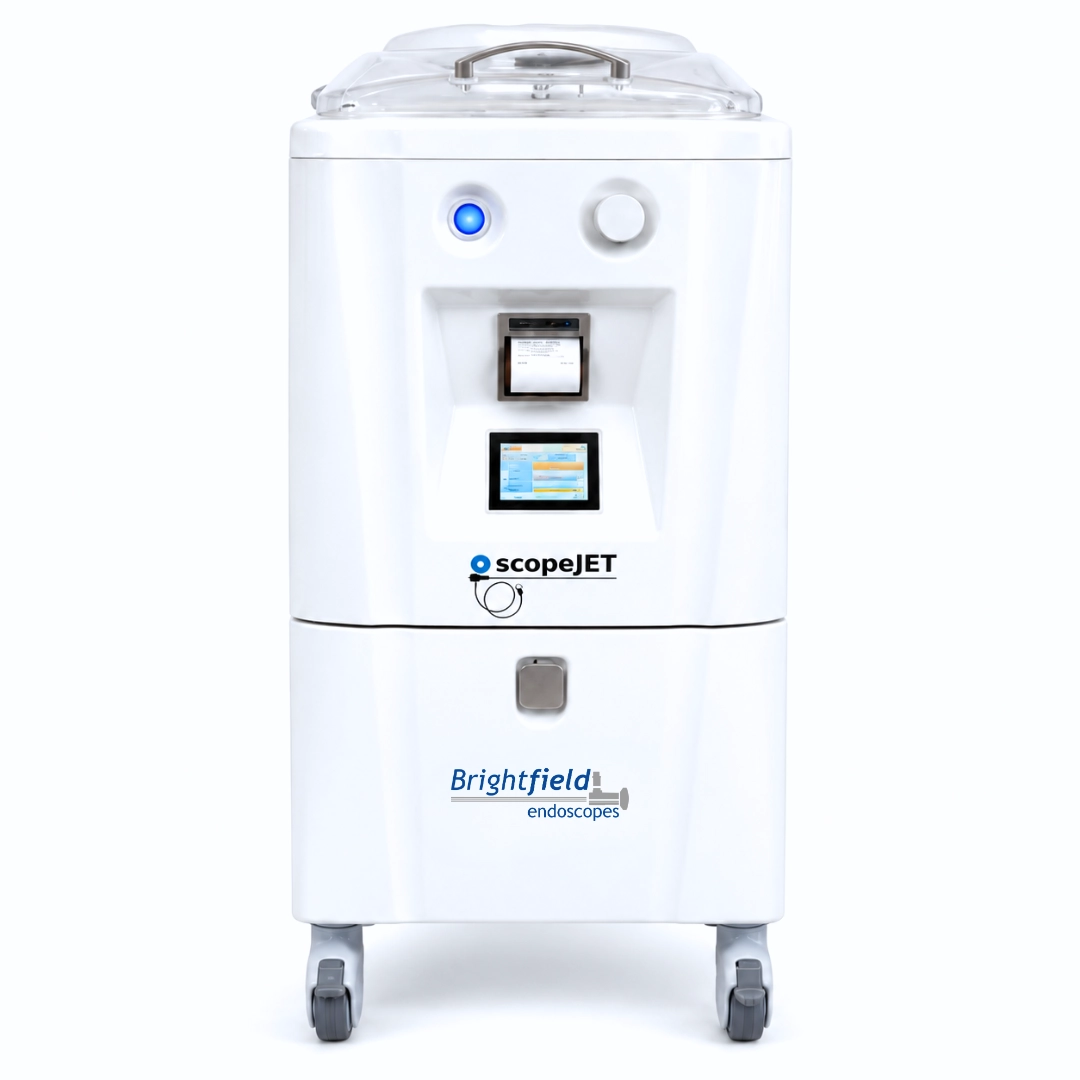

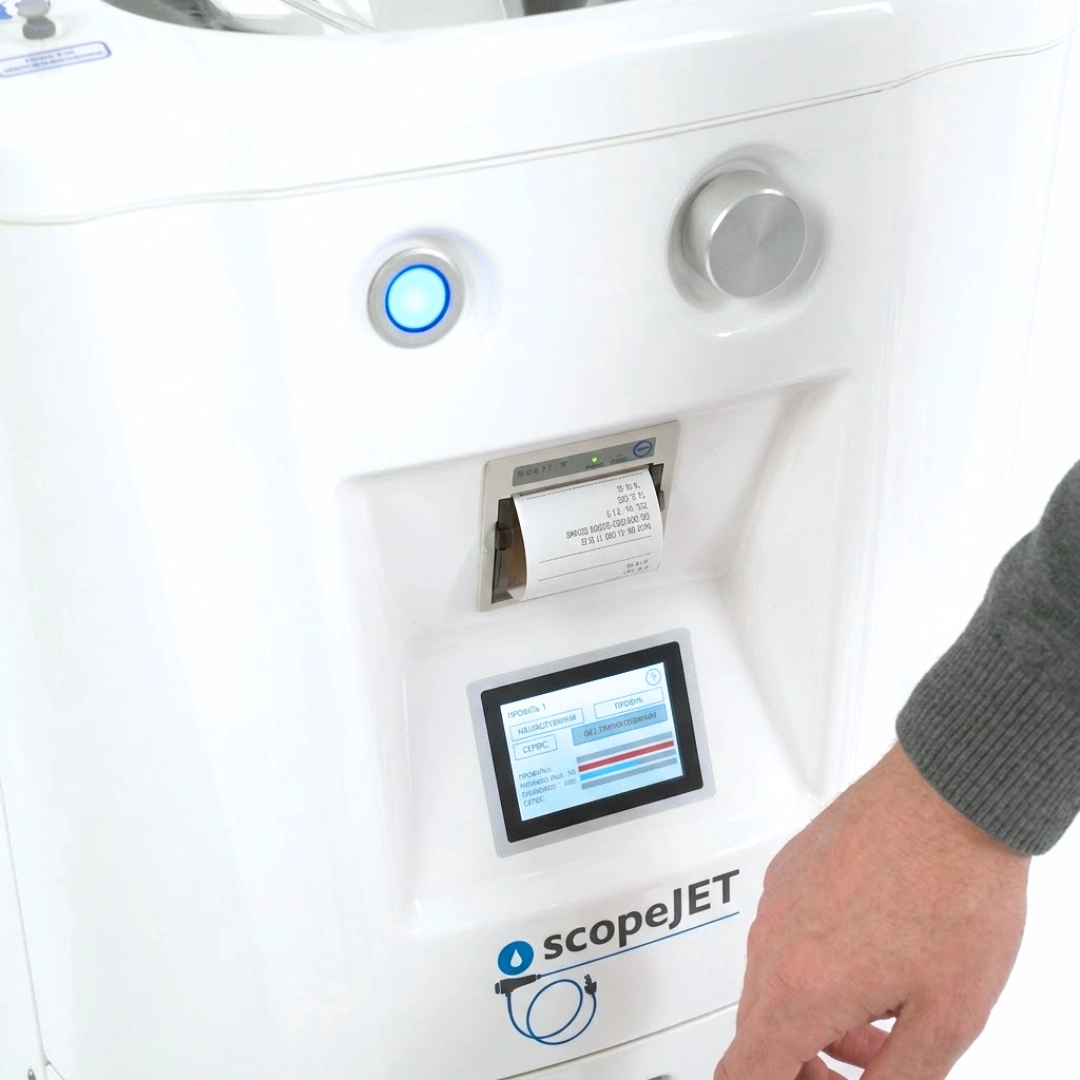

The 5-inch color touchscreen provides access to the main system controls and processing settings. PIN-code protection restricts access to system settings, while the integrated scanner supports identification of personnel and equipment.

The built-in printer produces a record of the completed processing cycle. An optional integrated Wi-Fi module can be used for remote firmware updates and diagnostics of machine components.

Water Filtration and Processing Fluids

The water circulation system incorporates two filters and an integrated UV lamp for additional water treatment.

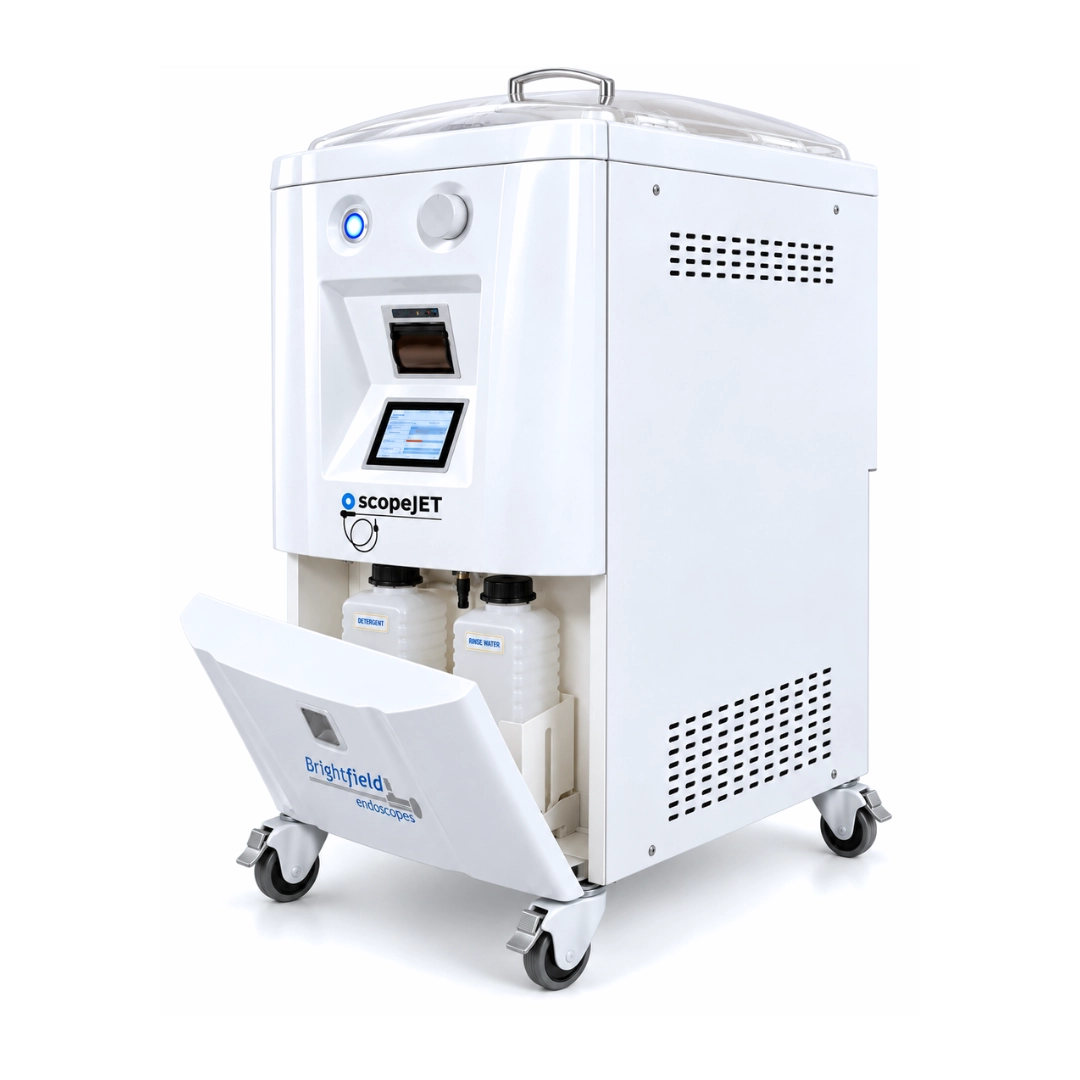

The processing system includes a 7-liter bath, an 8-liter disinfectant tank and separate 1-liter tanks for detergent and alcohol.

Automatic disinfectant intake supports the programmed sequence of washing, disinfection and rinsing.

Key Technical Characteristics

• Low-temperature washing and high-level disinfection
• One flexible endoscope per cycle
• 7-liter processing bath
• Continuous endoscope leak-tightness monitoring
• Double-rinse mode
• Adjustable washing and disinfection time
• Adjustable number of rinses
• 5-inch color touchscreen
• Built-in printer for cycle documentation
• PIN-code protection for system settings
• Scanner for personnel and equipment identification
• Two filters in the water circulation system
• Integrated UV lamp
• Automatic disinfectant intake
• Disinfectant tank: 8 liters
• Detergent tank: 1 liter
• Alcohol tank: 1 liter
• Power supply: AC 220–240 V, 50/60 Hz
• Power: 400 W
• Dimensions (W × H × D): 450 × 908 × 640 mm
• Weight: 60 kg

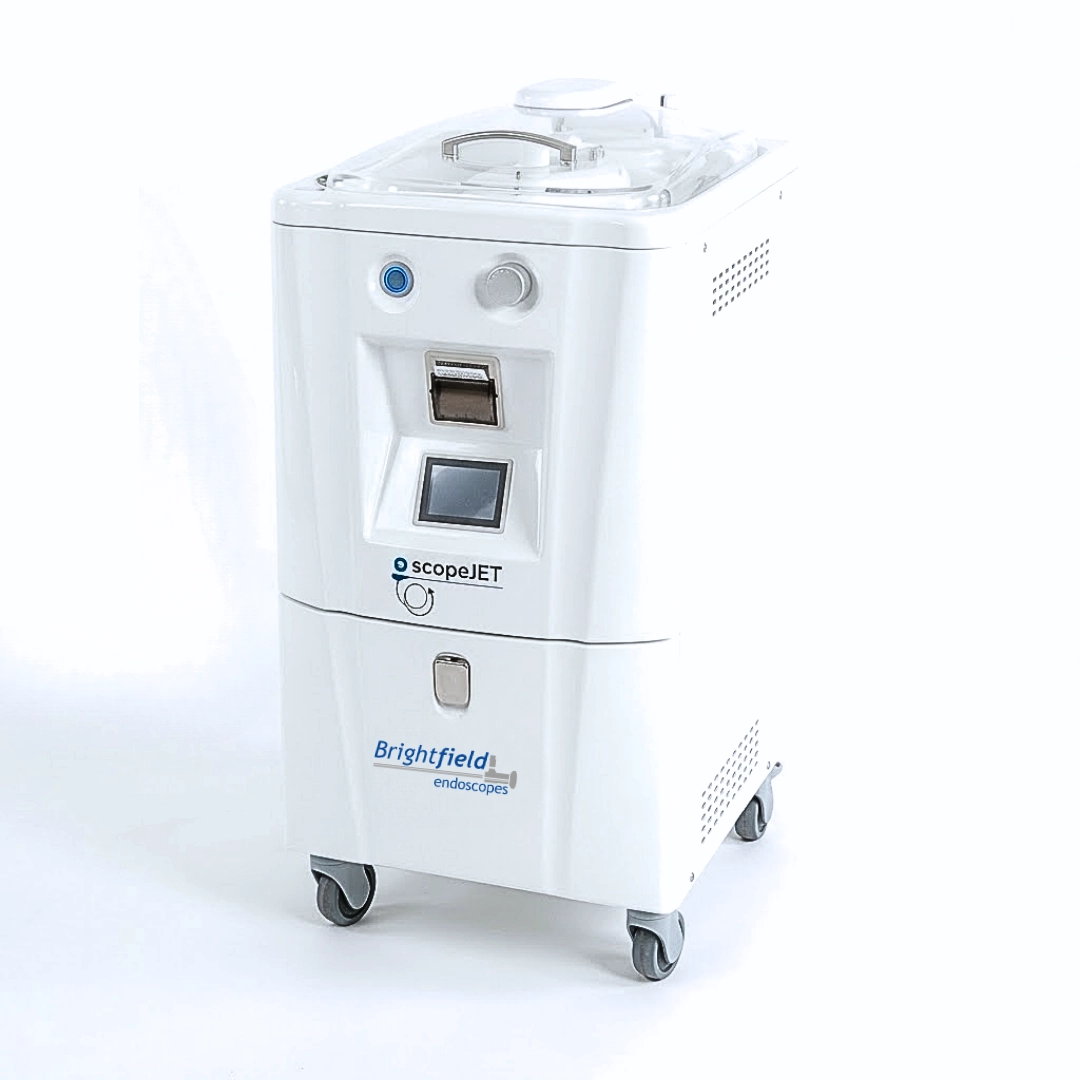

Compact Design for Single-Endoscope Processing

With dimensions of 450 × 908 × 640 mm and a weight of 60 kg, ScopeJet A1U has a compact footprint for installation in endoscopy departments and other clinical areas.

The combination of automated processing, continuous leak-tightness monitoring, double rinsing, water filtration, UV treatment and cycle documentation creates a controlled workflow for reprocessing one flexible endoscope per cycle.
