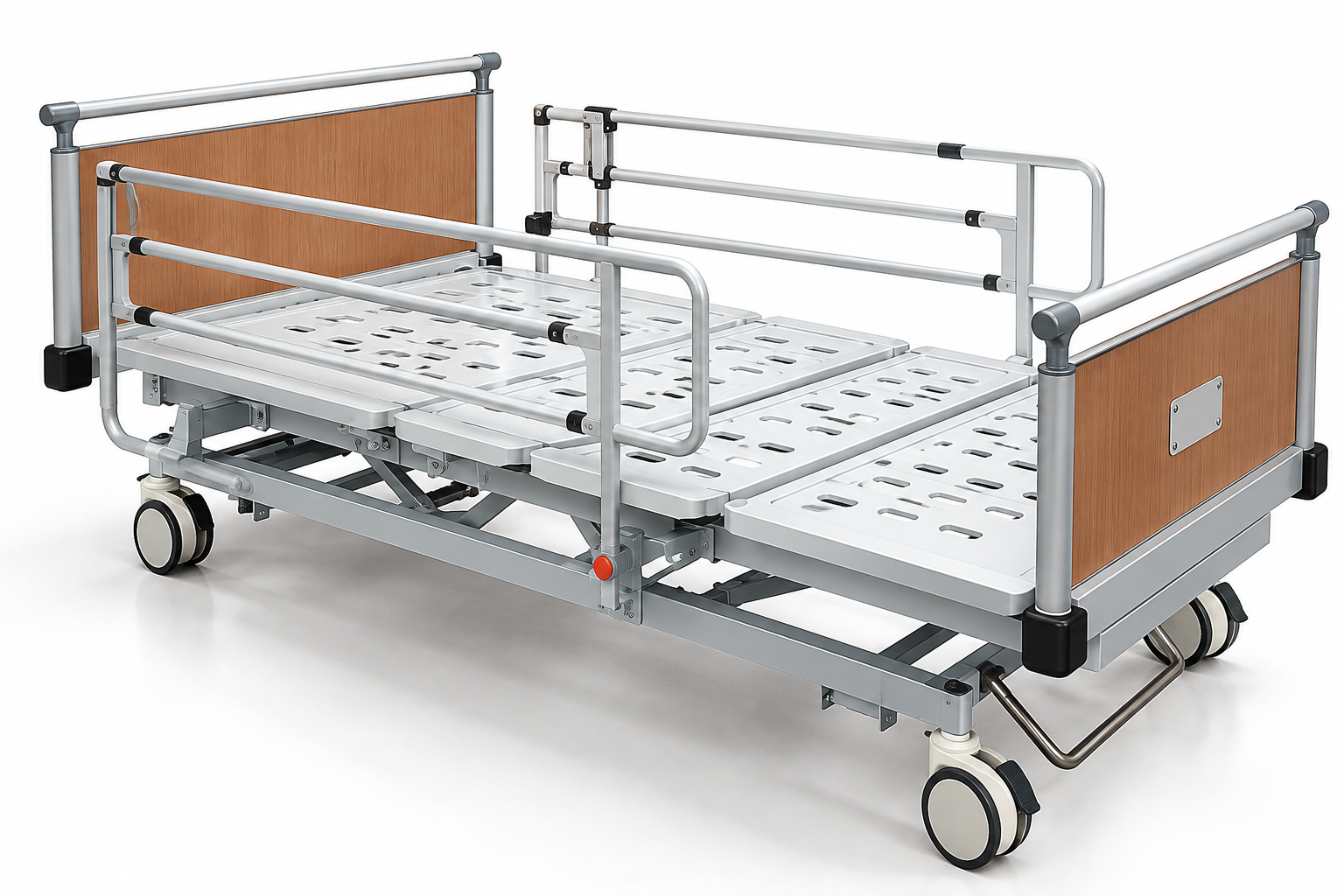

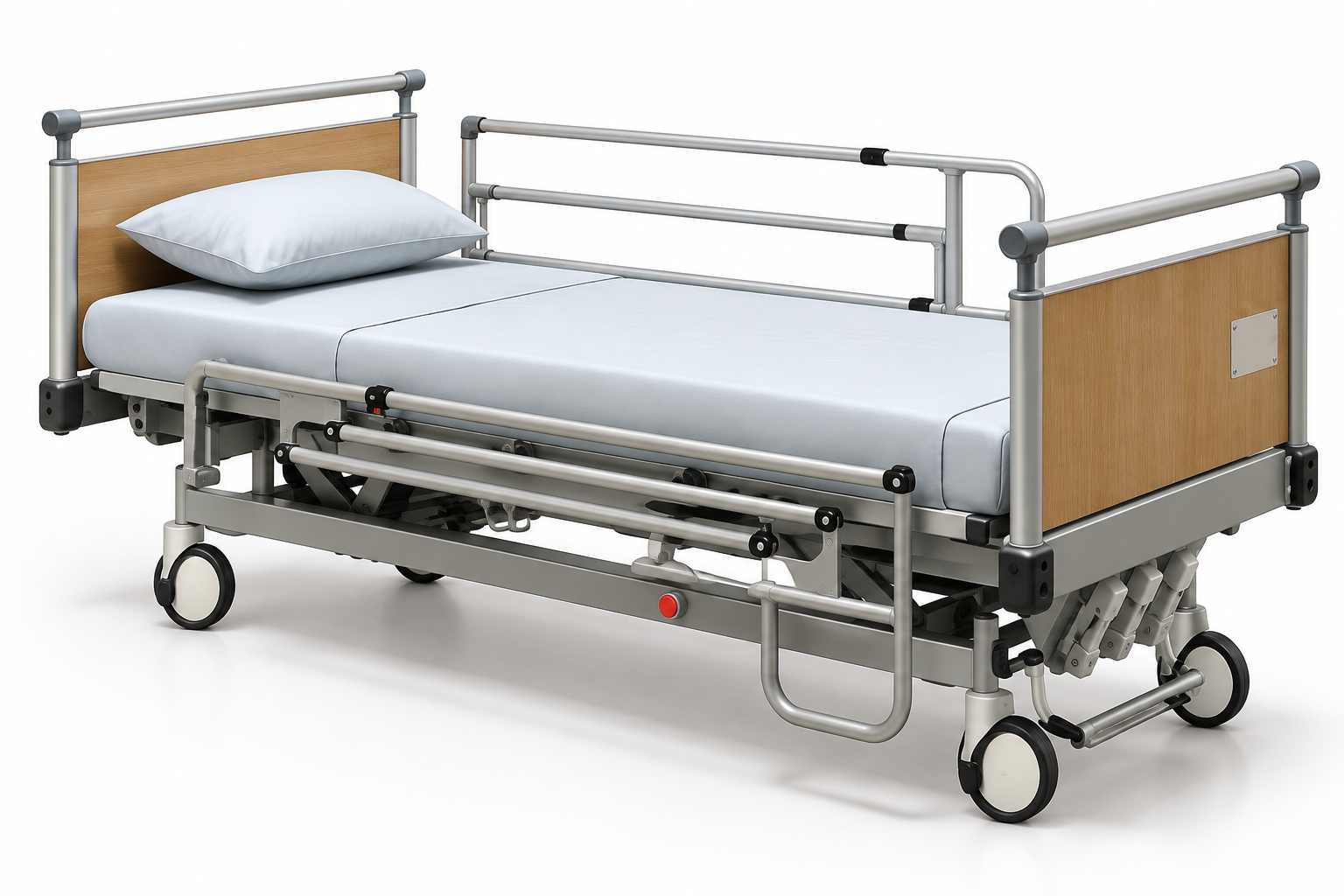

Electric Functional Medical Bed JDCJH241B
Reviews (0)Brightfield Healthcare JDCJH241B is a four-section electric hospital bed driven by three motors. Deck height (450–750 mm), backrest (0–75°) and leg section (0–45°) change at the touch of a button, while folding rails and a central brake on the 125 mm castors keep the patient secure. Rated for 250 kg.
About product
Positioning Without Physical Strain
Manual beds make the nurse crank or lift. On the JDCJH241B each movement has its own motor, so staff set the patient’s posture with buttons and keep their hands free for care. This matters most on wards where patients are repositioned many times a shift.
Three Motors, Three Movements
- Deck height 450–750 mm – low for getting in and out safely, high for examinations and dressing changes.
- Backrest 0–75° – from flat to an upright sitting posture.
- Leg section 0–45° – legs raised whenever needed.
- 250 kg – maximum load.
Moving and Parking the Bed
The bed rolls on four 125 mm castors. The central braking system locks all four of them together, so staff do not have to walk around the bed checking each wheel.
Frame and Rails
A premium steel frame with electrostatic powder coating keeps its finish under daily disinfection. The side rails fold away for transfers and hygiene procedures.
Where It Is Used
- Surgical and therapeutic wards
- Post-operative units
- Rehabilitation and long-term care
The overall footprint is 2240 × 980 mm. When in-bed weighing or lateral tilt is required, the JDCJH271B adds a multifunctional digital scale and side tilt to the same platform.
