Washer-Disinfector A1

ScopeJET Single-Endoscope Reprocessor

scopeJET by SterixX A1

Compact automatic reprocessor for low-temperature washing and high-level disinfection of one flexible endoscope, with a 7-litre bath for reduced disinfectant consumption.

About the Reprocessor

BRIGHTFIELD ENDOSCOPY REPROCESSING

Compact Design.
Complete Endoscope Reprocessing.

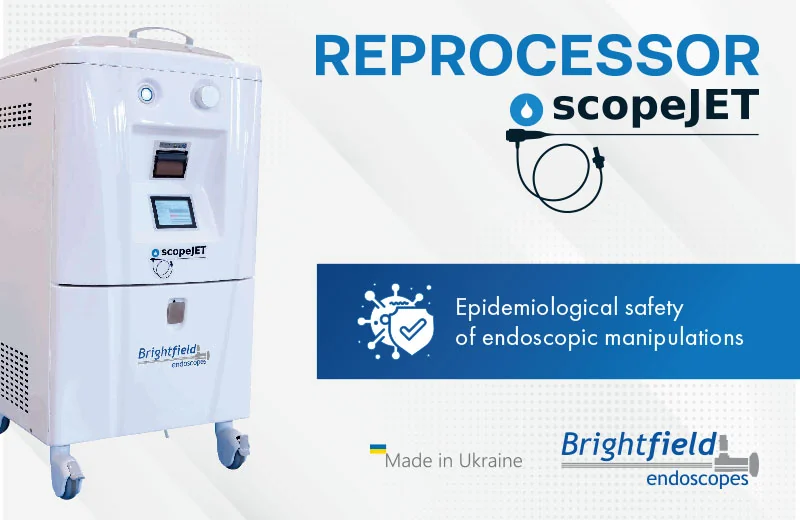

The Brightfield ScopeJET single-endoscope reprocessor is an automated system for low-temperature washing and high-level disinfection of one flexible endoscope per cycle. It combines a compact 7-litre processing bath, programmed washing and disinfection, water filtration and cycle documentation in one unit.

Designed for routine reprocessing in hospitals and endoscopy departments, the system reduces direct personnel contact with processing chemicals and helps standardise the washing and disinfection sequence. Its compact design is particularly suitable for facilities that process individual endoscopes.

1
Endoscope per cycle
7 L
Processing bath
2×
Rinsing stages
KEY ADVANTAGES

Focused on Efficient Single-Endoscope Processing

ScopeJET integrates the essential stages of endoscope washing and high-level disinfection within a compact automated system, helping personnel manage each processing cycle with consistent settings and documented results.
01 / COMPACT REPROCESSING

One Endoscope. A Dedicated Automated Cycle.

The system is designed for washing and high-level disinfection of one flexible endoscope in a 7-litre bath. The reduced chamber dimensions help limit the amount of disinfectant required for processing while providing a dedicated space for the instrument.
Compact footprint. Rational use of processing fluids. Controlled operation.
02 / STANDARDISED PROCESSING

Automated Washing and Disinfection

The automated system follows a programmed washing and high-level disinfection sequence. Standardised processing helps reduce manual handling and personnel contact with disinfecting solutions.
03 / DOUBLE RINSING

Additional Rinsing After Disinfection

The double-rinse mode is designed to remove disinfectant residues from the endoscope after the disinfection stage, supporting thorough completion of the programmed reprocessing sequence.
04 / PROCESS SETTINGS

Adjustable Cycle Duration

Washing and disinfection time parameters can be set by the user. This allows personnel to configure the processing sequence according to applicable instrument and disinfectant requirements.
05 / WATER TREATMENT

Two Filters and Integrated UV Treatment

The water circulation system incorporates two built-in filters and an ultraviolet lamp. These components complement the washing, disinfection and rinsing stages.
06 / CYCLE DOCUMENTATION

Printed Processing Records

The integrated printer produces a record of the processing cycle, providing documentation of the completed washing and disinfection procedure for routine departmental records.
07 / COMPACT CONSTRUCTION

Designed for Limited Space

The compact configuration allows the reprocessor to be positioned within a dedicated endoscope processing area while retaining integrated washing, disinfection, rinsing and printing functions.
DAILY ENDOSCOPY WORKFLOW

Standardised Reprocessing, Cycle After Cycle

After the required preliminary endoscope preparation, the instrument is placed in the reprocessor and connected according to the processing procedure. Medical personnel select the required washing and disinfection parameters before starting the automated cycle.

The machine performs the programmed sequence, including disinfection and double rinsing. A printed record helps personnel document the completed process. Automation supports more consistent daily procedures and limits direct contact with disinfectants.

PRACTICAL SINGLE-ENDOSCOPE SOLUTION

A Dedicated Reprocessor for Individual Instruments

ScopeJET is particularly relevant for medical facilities that process endoscopes individually and need an automated system without the processing capacity of a dual-endoscope machine.

The 7-litre bath, dedicated processing sequence and integrated documentation provide a practical combination for routine endoscope reprocessing.

BRIGHTFIELD SCOPEJET

Discover the Single-Endoscope Solution

Contact Brightfield to discuss the configuration, technical specifications and availability of the ScopeJET single-endoscope reprocessor for your medical facility.
View Product Details

Key Advantages

  • Epidemiological safety of endoscopic manipulations
  • Reduced bath dimensions ensure savings of disinfectants
  • Compactness
  • Wide range of functions and intuitive operation
  • Comprehensive approach to disinfection, excluding the human factor

  • Washing and disinfection of one endoscope
  • Double rinsing mode completely removes disinfectant residues
  • Time parameters of washing and disinfection are set by the user
  • Printing a cycle of works on the built-in printer
  • Two built-in filters in the water circulation system
  • Ultraviolet lamp is built into the water circulation system

Technical Characteristics

Specification Value
Dimensions450 × 908 × 640 mm
Weight60 kg
Disinfectant tank8 L
Detergent tank1 L
Alcohol tank1 L
Bath capacity7 L
PumpsAir, draining, disinfection, hydro pump
Water filterYes
UV lampYes (in water circulation system)
Power supplyAC 220–240 V, 50/60 Hz
Power consumption400 W
